Detail Text Description

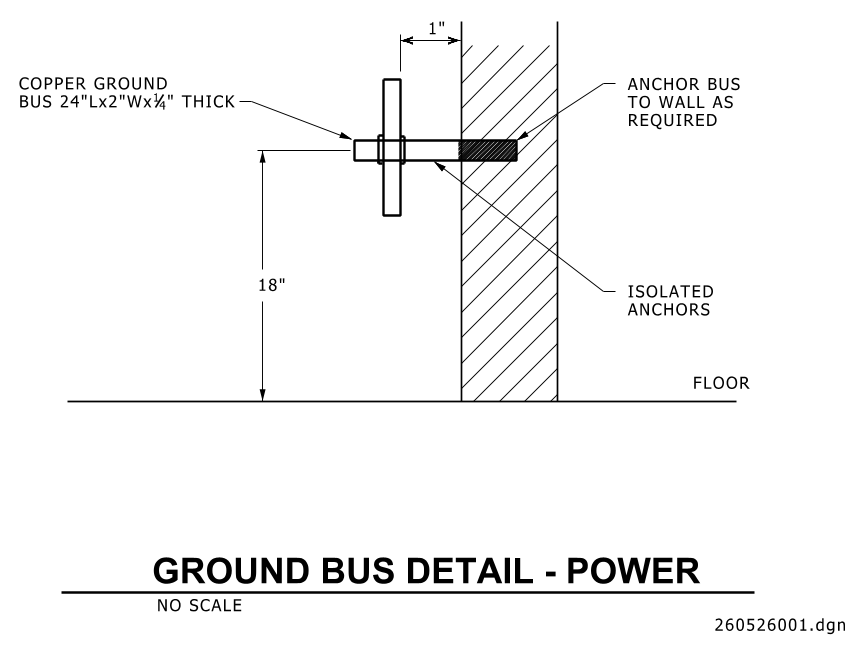

A technical drawing showing the cross section of a copper ground bus installation. The copper ground bus is depicted and measures 24 inches in length, 2 inches in width, and 1/4 inch in thickness. It is attached to a vertical wall, which is represented with hatched lines, indicating a 1-inch distance from the wall. Isolated anchors are used to secure the copper bus to the wall. An arrow points to the floor, indicating an 18-inch distance to the centerline of the bus. The drawing is labeled “GROUND BUS DETAIL – POWER,” and it is noted that there is no scale. The document identifier “260526001.dgn” appears at the bottom right corner.
Additional Formats
Additional formats provided for print or third party applications:
