Detail Text Description

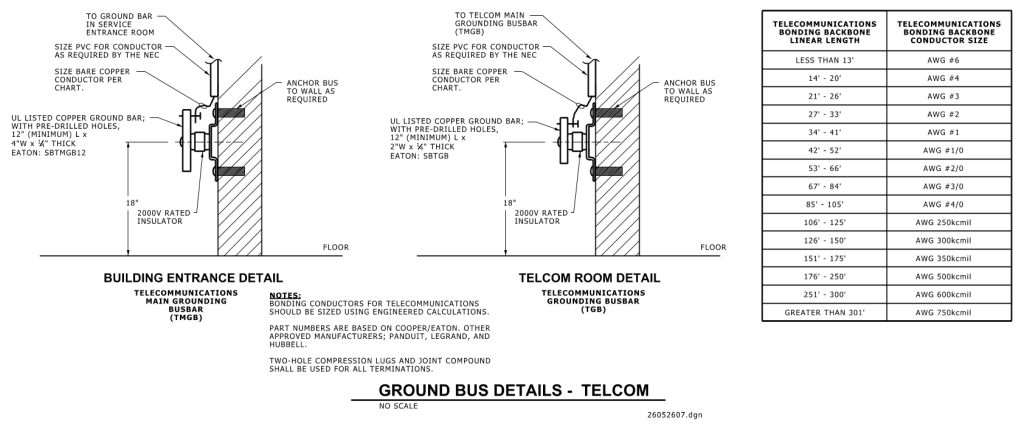

A technical drawing illustrating two main details for grounding busbars in a telecommunications installation: the Building Entrance Detail and the Telecom Room Detail. Both sections feature diagrams showing connections involving UL listed copper ground bars, PVC and bare copper conductors, and anchoring requirements. Each diagram includes specific labels for components such as insulators and busbars. Adjacent to the diagrams is a table listing telecommunications bonding backbone conductor sizes according to linear length specifications. The image provides sizing information and part numbers, along with notes regarding the sizing of bonding conductors for telecommunications.
Additional Formats
Additional formats provided for print or third party applications:
