26053307 – New Conduit Thru New Membrane Roof

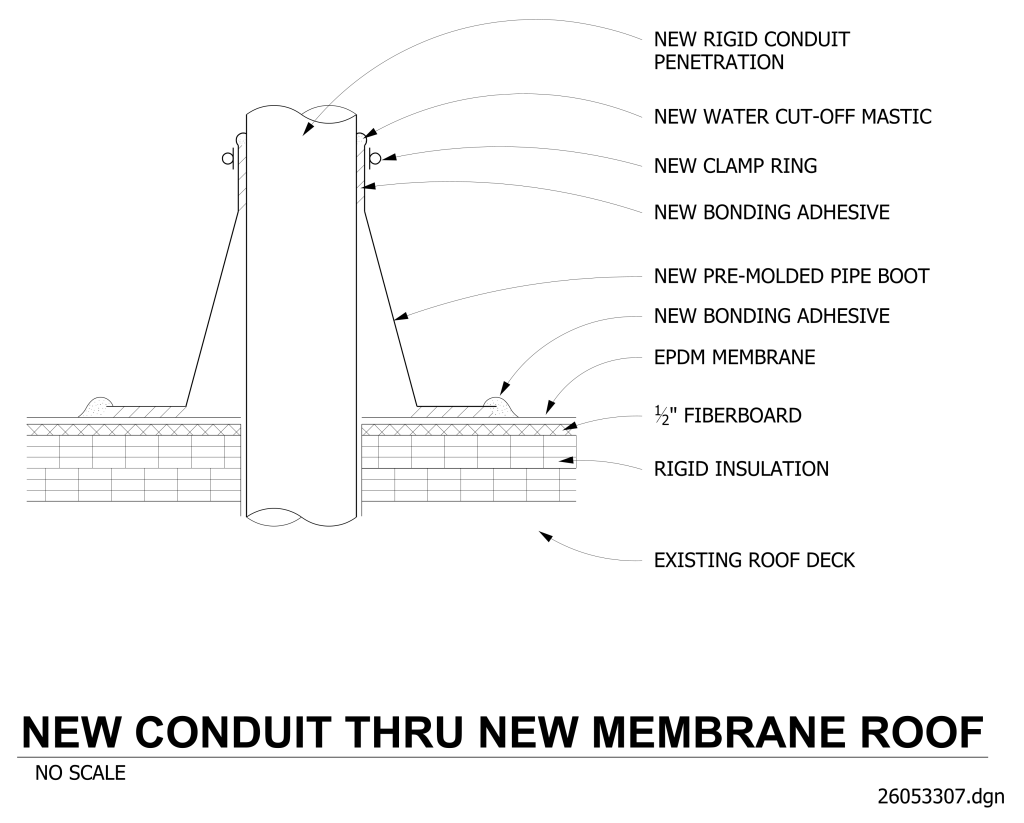

A technical diagram depicting a side view of a roof detail called “NEW CONDUIT THROUGH NEW MEMBRANE ROOF.” At the center is a vertical cylindrical conduit, labeled “NEW RIGID CONDUIT PENETRATION,” which passes through the various roof layers. The layers from top to bottom include “NEW WATER CUT-OFF MASTIC,” “NEW CLAMP RING,” “NEW BONDING ADHESIVE,” “NEW PRE-MOLDED PIPE BOOT,” another layer of “NEW BONDING ADHESIVE,” followed by the “EPDM MEMBRANE.” Below this is “½” FIBERBOARD,” then “RIGID INSULATION,” and finally the “EXISTING ROOF DECK.”
