Detail Text Description

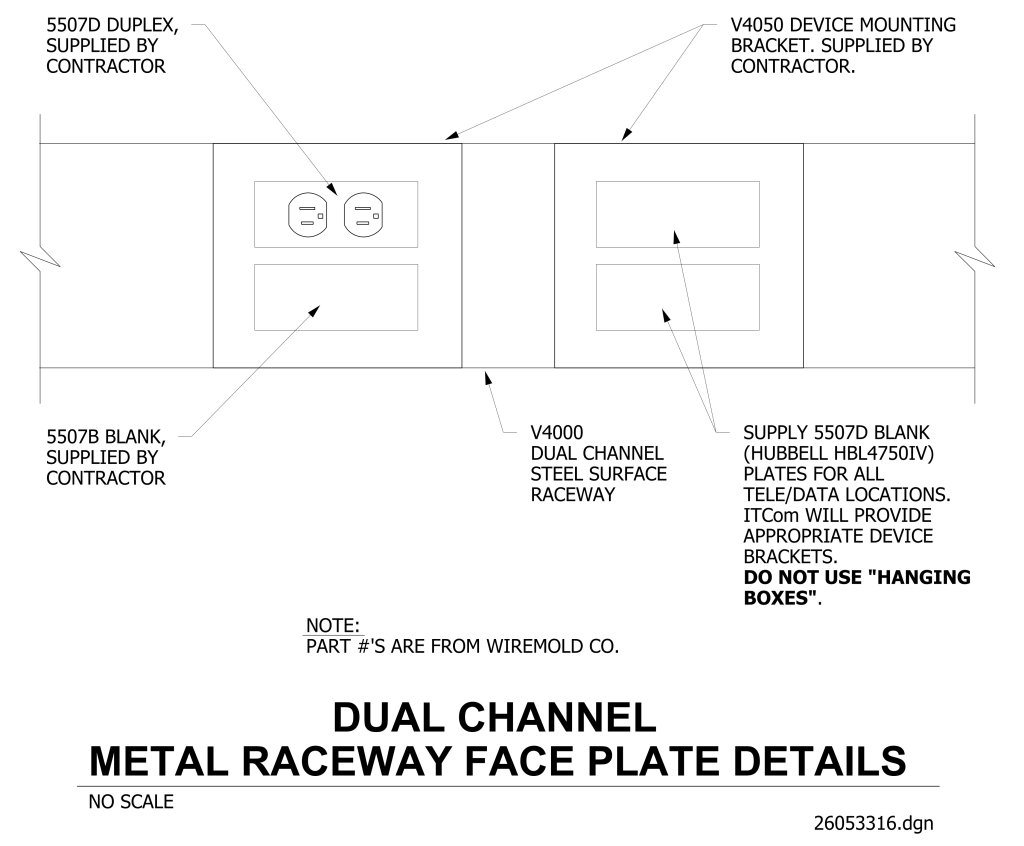

A technical detail of dual channel metal raceway face plates for a “V4000 Dual Channel Steel Surface Raceway”. It depicts face plates with openings where components are located. One face plate contains a duplex outlet “5507D” and a blank “5507B” noted as supplied by contractor. One face plate contains two “5507D Blank (Hubbell HBL4750IV)” plates and is noted for all tele/data locations. These are also supplied by contractor. A “V4050 Device Mounting Bracket” is shown at each faceplate also noted as supplied by the contractor. There is a note stating not to use “hanging boxes.” The part numbers are for Wiremold Co. products.
