Detail Text Description

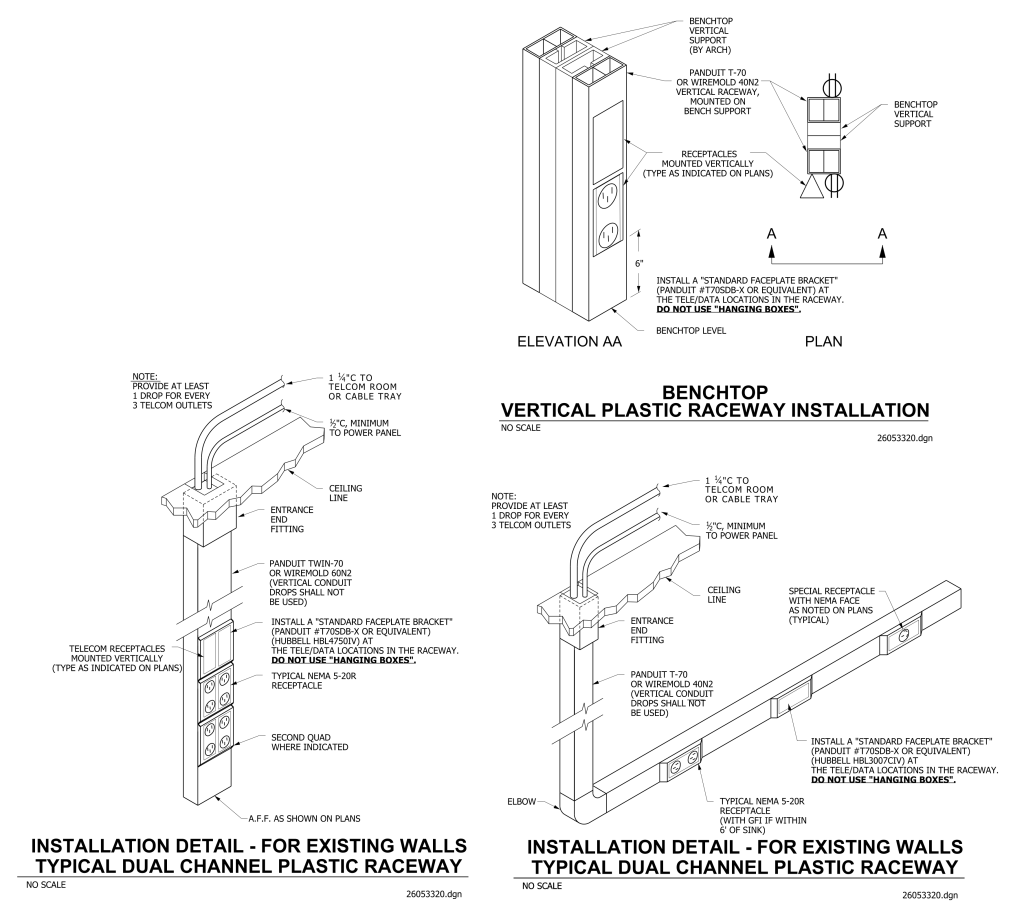

Technical drawings detailing the installation of vertical and horizontal plastic raceways for electrical outlets. The top right section, titled “Benchtop Vertical Plastic Raceway Installation,” includes two diagrams: a three-dimensional elevation and a plan view of a vertical raceway. The raceway supports electrical receptacles, indicated to be mounted vertically. The diagrams specify installation instructions like using a standard faceplate bracket and avoiding hanging boxes.
The bottom section contains two separate diagrams labeled “Installation Detail – For Existing Walls, Typical Dual Channel Plastic Raceway.” On the left, a vertical installation is depicted with telecom receptacles and fittings shown mounted on a wall. The right diagram illustrates a horizontal raceway with a special receptacle mounted near the face and an elbow fitting at one end, along with detailed instructions for proper wiring and connection to the power panel.
