Detail Text Description

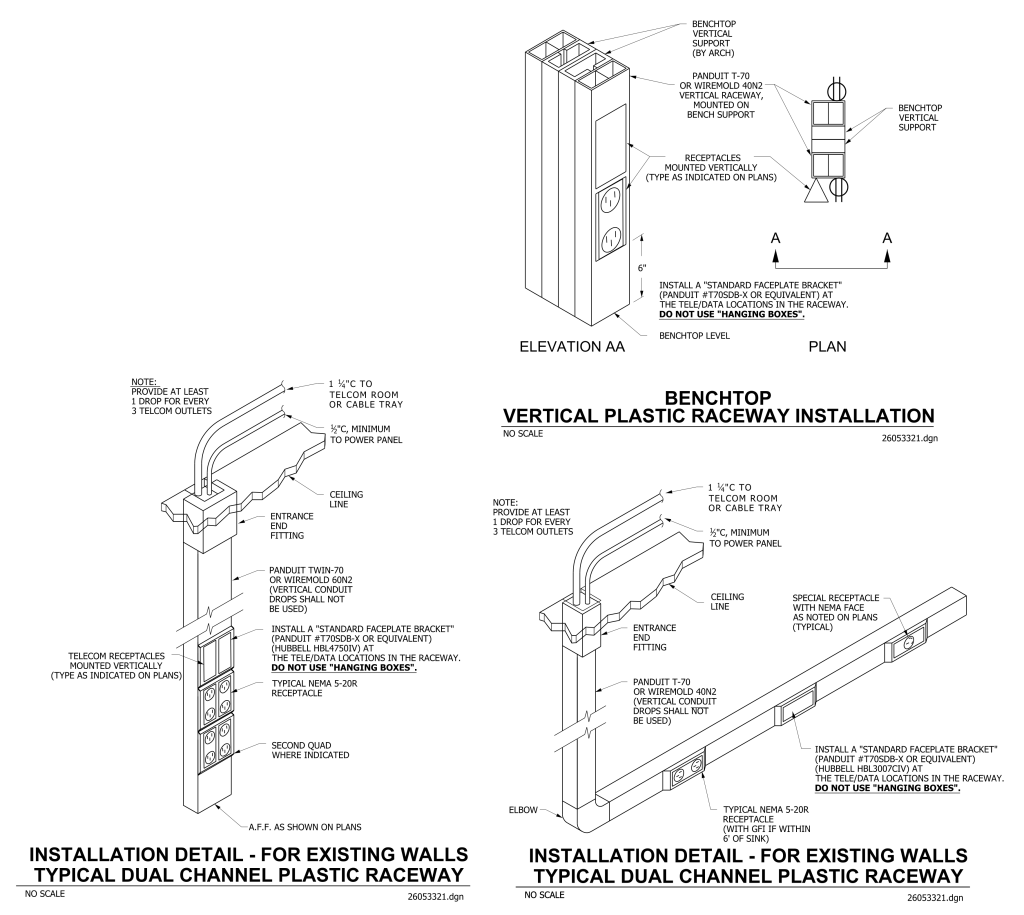

A technical drawing detailing various installation views of a plastic raceway system. The drawings provide both elevation and plan views for vertical and horizontal raceway installations.
In the upper right, a 3D drawing shows a vertical plastic raceway mounted on a benchtop, supported by vertical supports and featuring vertically mounted receptacles. It is labeled with specific component names and instructions, such as using a “Standard Faceplate Bracket.”
The lower left shows an “Installation Detail” for existing walls, illustrating a vertical raceway with two channels for routing cables, marked by labeled components like entrance fittings, second quad, and telecom receptacles. Notes specify requirements for drops to the telecom room.
The lower right features a horizontal raceway detail, showing installation information such as elbows and receptacles placed within the raceway. This section is similarly labeled with guidance on using faceplate brackets and proper drop distances.
