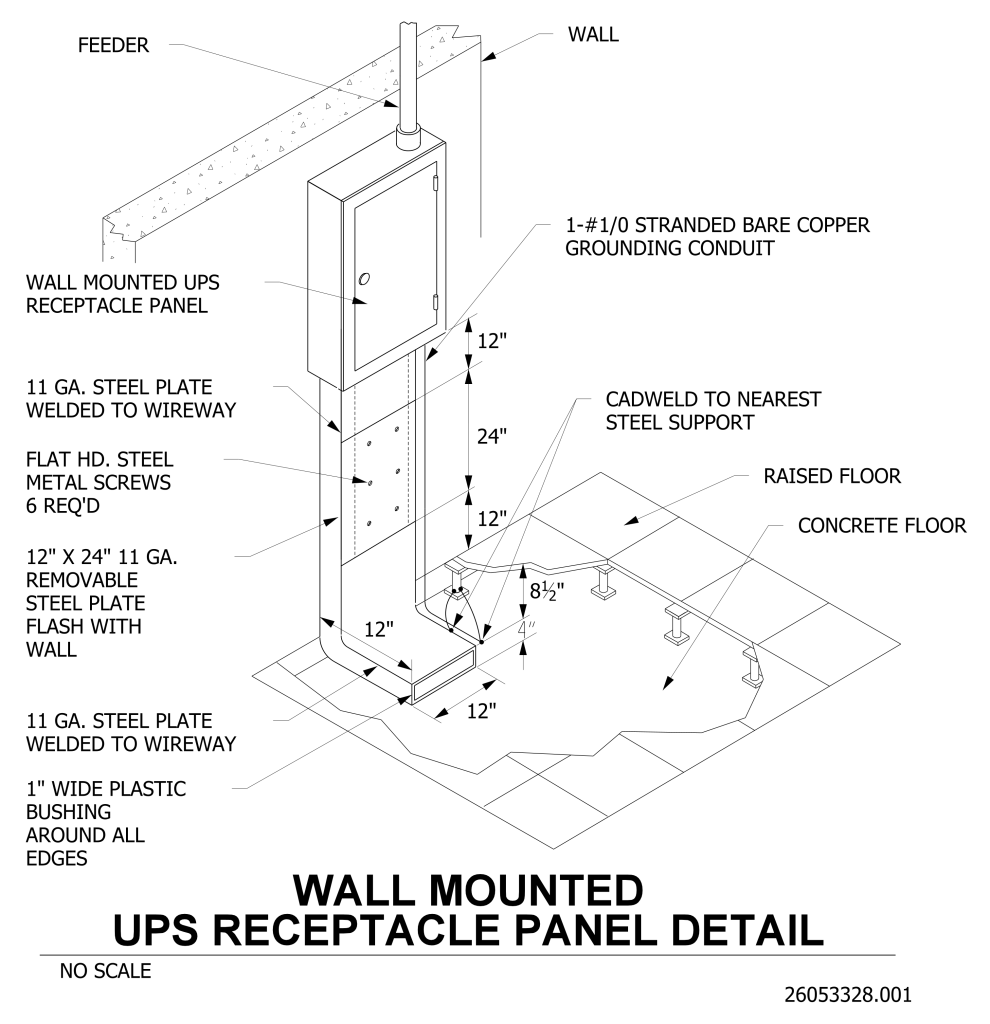

26053328 – Wall Mtd UPS Recep Pnl Detail

A technical drawing of a wall-mounted UPS receptacle panel detail. The drawing shows a vertical installation against a wall with various components marked and labeled. At the top, a feeder is connected to the panel, which consists of a rectangular box with a door. I12″ x 24″ 11 ga. removable steel plate flush with wall is secured with 6 flat head steel metal screws. A 1-#1/0 stranded bare copper grounding conduit is connected to the box. Below removable steel plate is 11 ga. steel plate welded to wireway with 1″ wide plastic bushing around all edges. These elements are positioned over a concrete floor, transitioning into a raised floor. Measurements and spatial relations are indicated with lines and dimensions, showing various distances like 12 inches and 24 inches between segments. A note is made to “cadweld to nearest steel support.”
