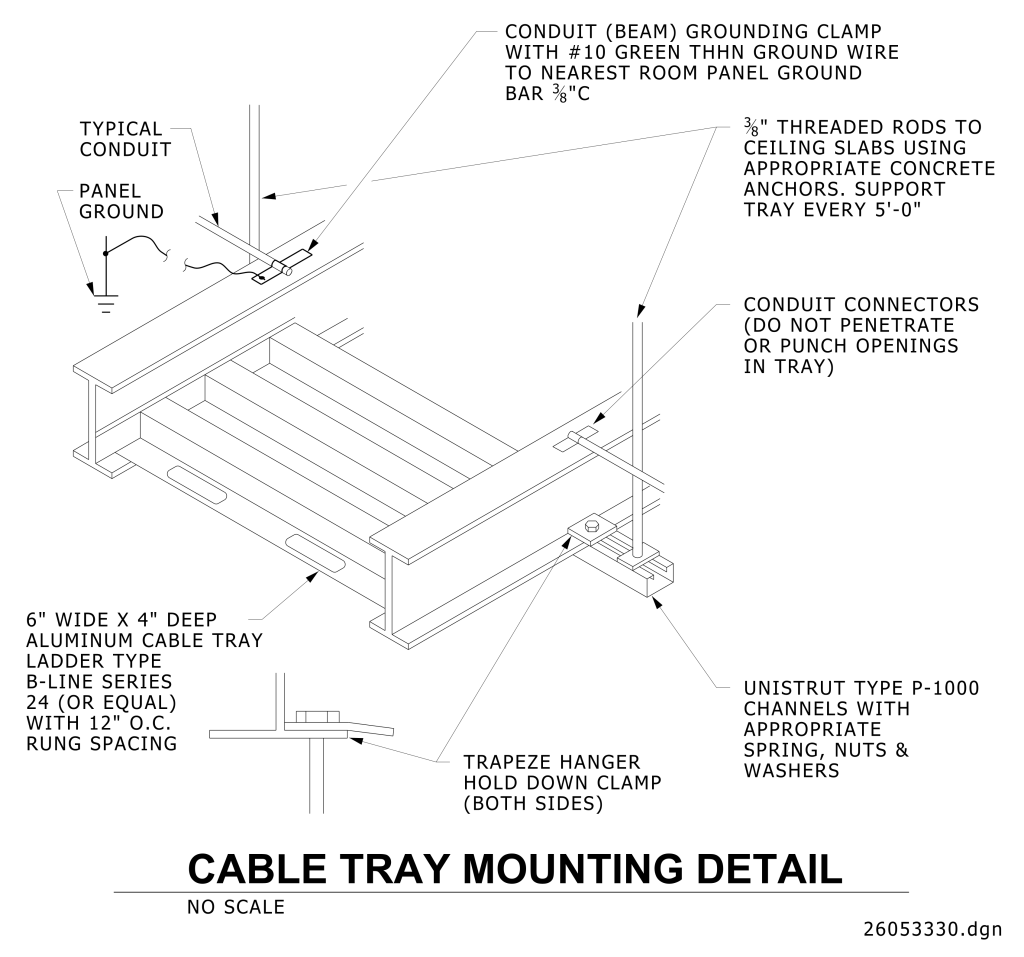

26053330 – Cable Tray Mounting Detail

A technical drawing illustrating a cable tray mounting detail. The main component is a horizontal aluminum cable tray, which is 6 inches wide and 4 inches deep. The tray is designed in a ladder-type pattern with rungs spaced at 12 inches on center. It is labeled as a B-Line Series 24 or equivalent. The tray is supported by trapeze hangers on both sides, held with hold down clamps. There’s a conduit running perpendicular to the tray, identified as “typical conduit,” with a noted connection to “panel ground.” The drawing includes details of the cable tray’s attachment to the ceiling via ⅜-inch threaded rods and concrete anchors, which support the tray every 5 feet. Additional components include unistrut type P-1000 channels with spring, nuts, and washers, and conduit connectors that are instructed not to penetrate or punch openings in the tray.
