Detail Text Description

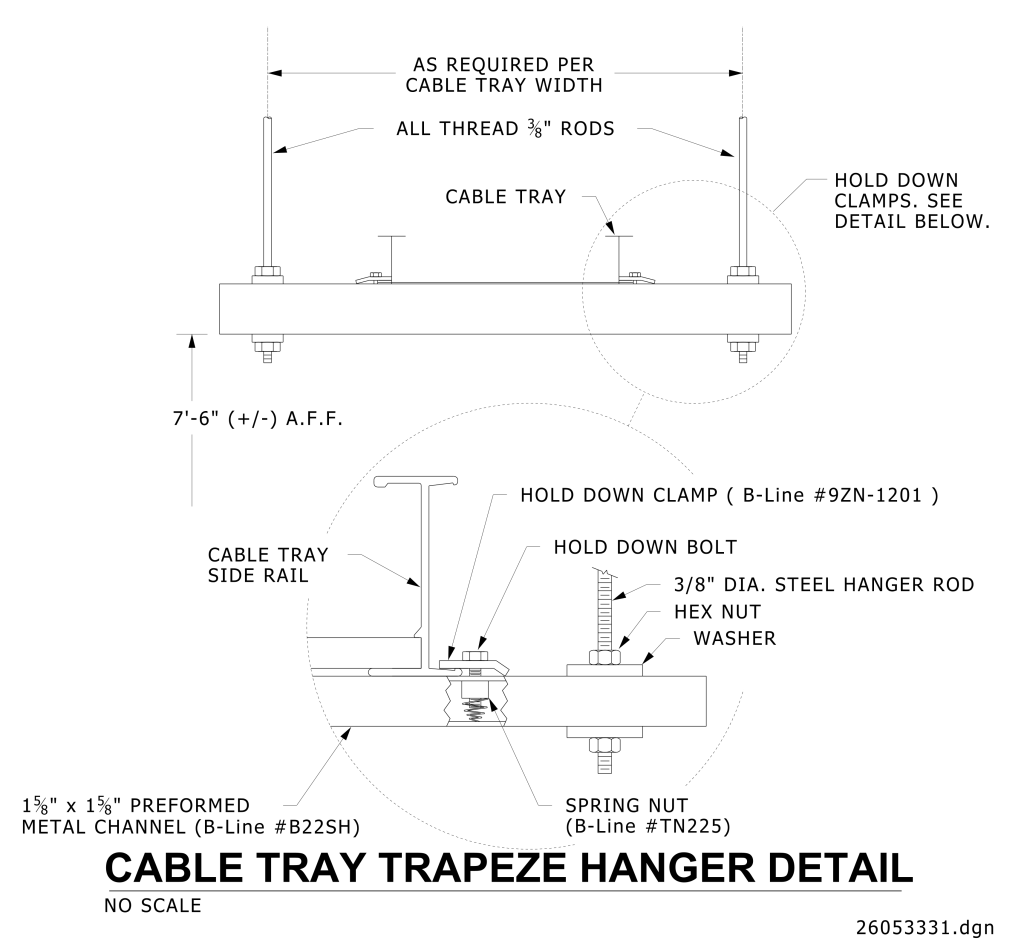

A technical drawing of a cable tray trapeze hanger detail. It shows a side view of a cable tray supported by hanger rods and clamps. The tray is suspended from two vertical 3/8-inch threaded rods, with details indicating they are adjusted as required per the cable tray width. The height from the bottom of the tray to the floor is noted as 7 feet 6 inches above finished floor (A.F.F.). The cable tray is clamped with hold-down clamps attached to the side rail. Labels detail components such as the hold-down clamp (B-Line #9ZN-1201), hold-down bolt, 3/8-inch diameter steel hanger rod, hex nut, washer, and spring nut (B-Line #TN225). The preformed metal channel is also noted with dimensions 1 5/8 inches by 1 5/8 inches (B-Line #B22SH).
Additional Formats
Additional formats provided for print or third party applications:
