26053332 – Center Hung Cable Tray

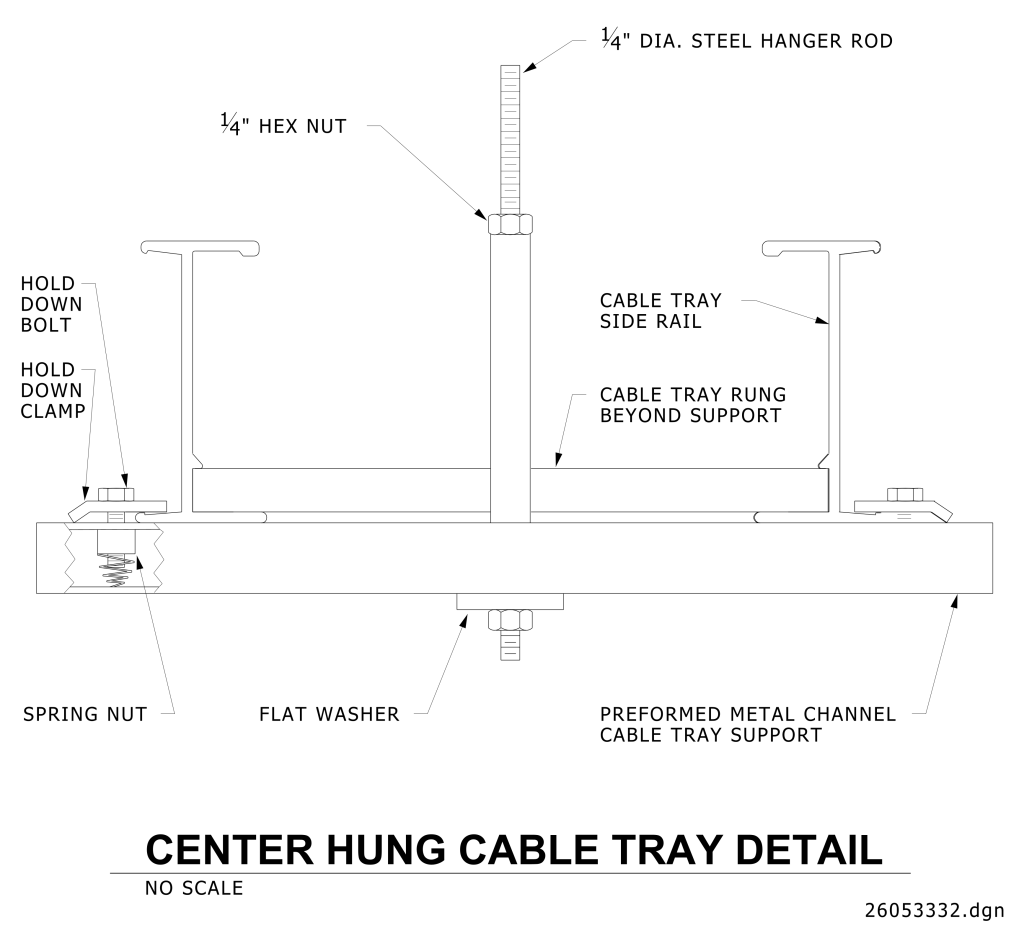

A detailed technical drawing of a center-hung cable tray system. At the top of the image, a 1/4 inch diameter steel hanger rod is depicted, vertically oriented, with a hex nut securing it. The cable tray consists of side rails and rungs, which extend beyond the support structure. The drawing shows parts labeled including a hold-down bolt and clamp, which are attached to a flat washer and spring nut at the bottom. The preformed metal channel provides support for the cable tray. Each component is labeled with arrows pointing to specific parts of the system.
