26053334 – Tray Mounted Raceway

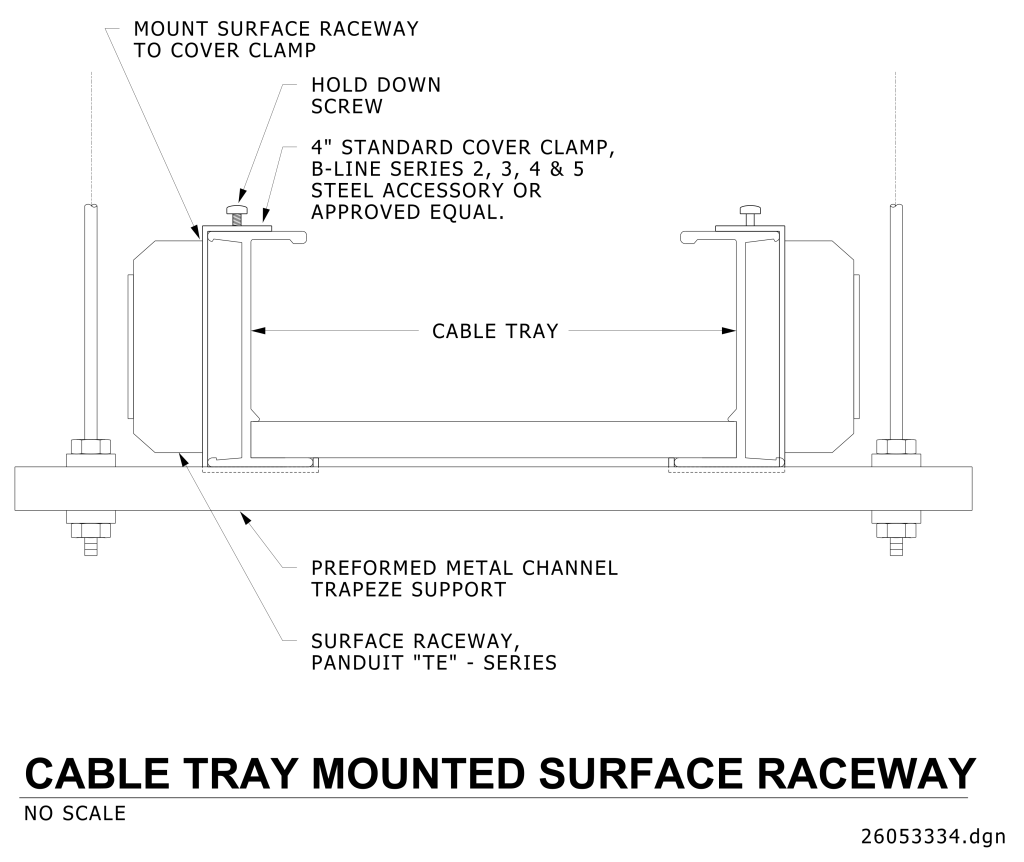

A technical drawing of a surface raceway mounted to cable tray. It shows a cross-sectional view of the assembly, featuring several labeled components. On both ends of the drawing, two vertical threaded rods are shown, each passing through a rectangular plate or bracket. These rods support the structure. In the middle, a cable tray spans horizontally between two standard cover clamps. Each clamp holds the tray in place using a hold-down screw. The drawing specifies a 4-inch standard cover clamp from B-Line Series 2, 3, 4, and 5, or equivalent, attaching to the tray. Beneath the setup, a preformed metal channel trapeze support is depicted, labeled as “Surface Raceway, Panduit ‘TE’ – Series.”
