26053342 – Vertical Raceway For Existing Walls

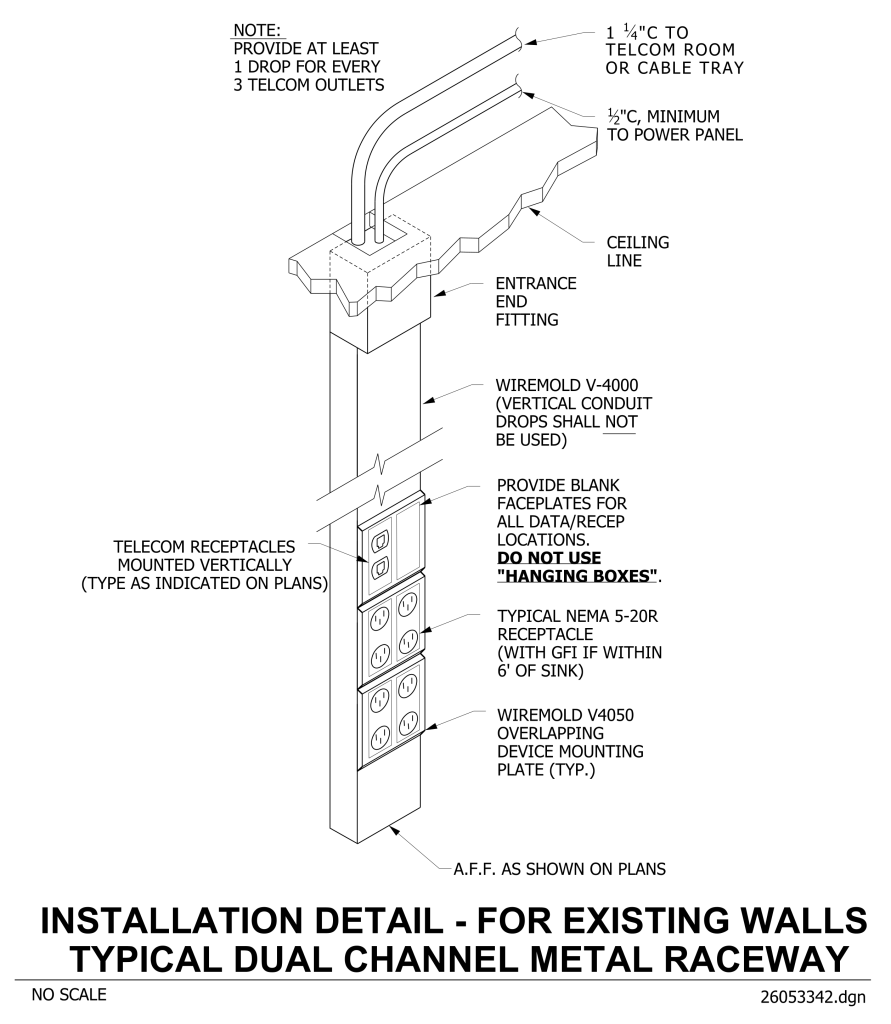

A technical drawing labeled “Installation Detail – for Existing Walls Typical Dual Channel Metal Raceway.” It shows a vertical conduit system used for telecommunication and power outlets, intended for mounting on existing walls. At the top, two cables run from an entrance end fitting towards the ceiling; one is labeled for the telecom room, and the other leads to the power panel. Below this is the Wiremold V-4000 raceway chassis, with a note that vertical conduit drops shouldn’t be used. The raceway includes several vertically mounted telecom receptacles and NEMA 5-20R receptacles for power, with specific installation instructions. There are also instructions regarding faceplates, with an emphasis on not using “hanging boxes.” The components are marked with labels and lines pointing to parts of the structure. The drawing is annotated with specifications for installation and comments on the configuration.
