Detail Text Description

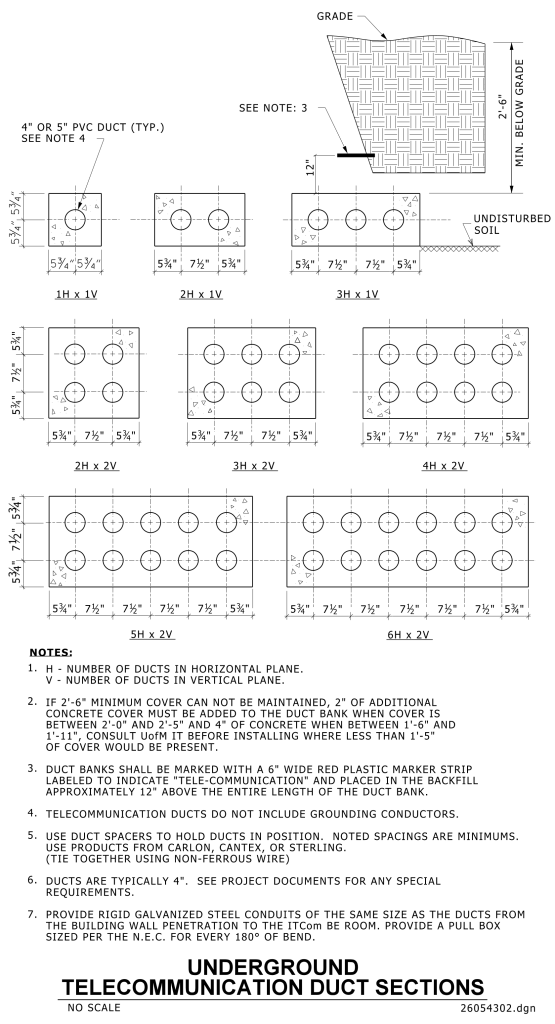

A technical drawing of underground telecommunication duct sections. It includes cross-sectional views of PVC ducts in various configurations, specifying dimensions and layout. There are eight different duct arrangements shown, ranging from one duct high and one duct wide (1H x 1V) to six ducts high and two ducts wide (6H x 2V). Each configuration is depicted with circular cutouts to represent individual ducts, enclosed within rectangular concrete. Measurements are given for each arrangement, with horizontal spacing between the ducts indicated. Adjacent to the ducts, various notes describe soil coverage, labeling, spacing, and installation guidelines. The top right corner features a section of undisturbed soil below the ducts, indicating a minimum grade level.
