26054314 – 4x4x4 Pre-cast Itcs Handhole

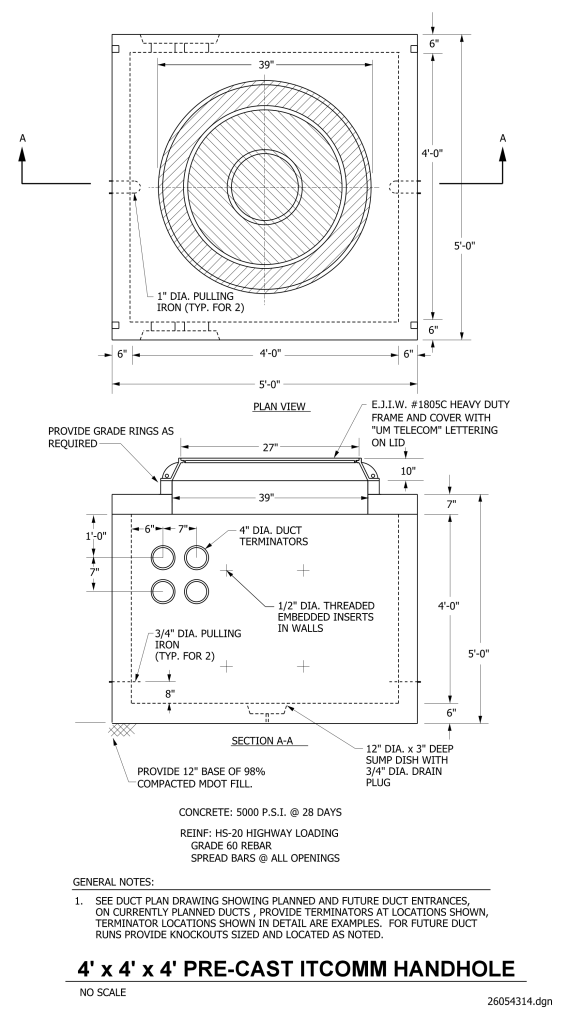

A technical drawing of a pre-cast ITCOMM handhole, labeled as 5 feet by 5 feet. The drawing includes a plan view and a sectional view A-A. The plan view shows a square with a circular cover, measuring 39 inches in diameter, centrally located. Notable features in this view are two 1-inch diameter pulling irons, indicated as typical for two, and grade rings that are to be provided as required.

Section A-A shows a side view with details like 4-inch diameter duct terminators and embedded inserts in the walls. The section details the requirement of a 12-inch base with compacted MDOT fill and a 12-inch diameter sump dish with a drain plug. The drawing specifies concrete at 5000 PSI and reinforced with HS-20 highway loading standards. The dimensions of various components, including the heavy-duty frame and cover, are noted.
