Detail Text Description

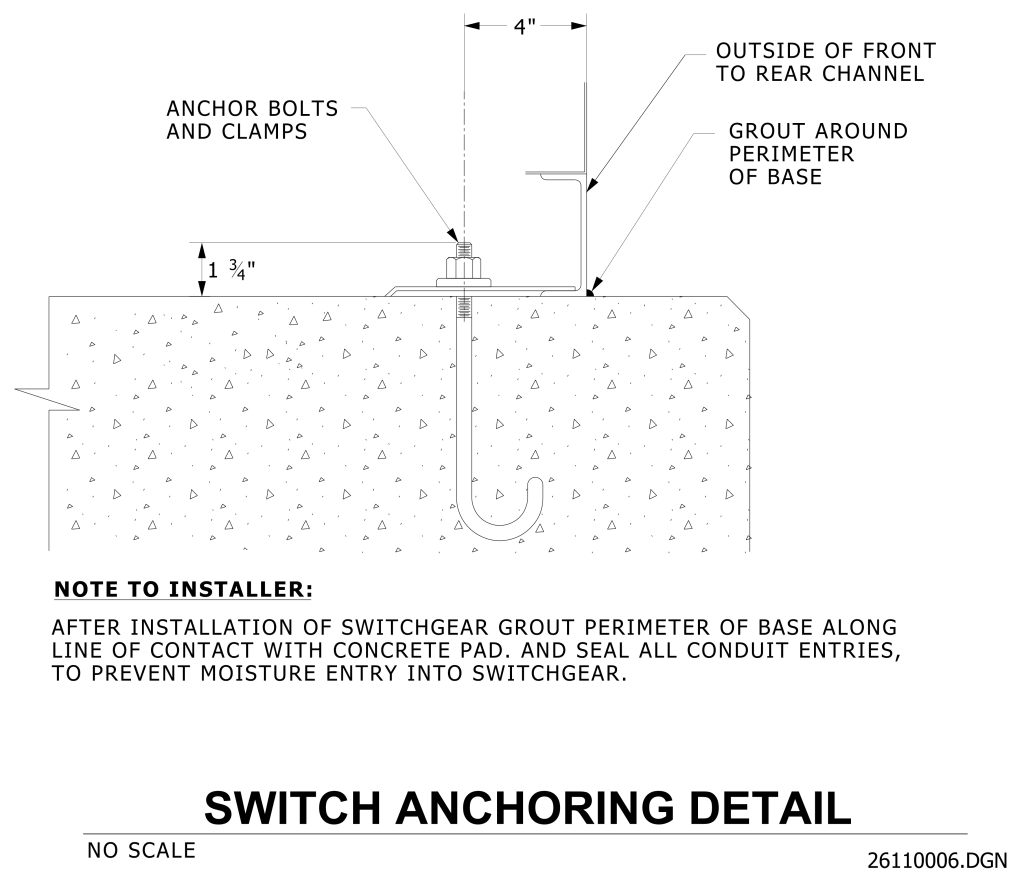

A technical drawing labeled “Switch Anchoring Detail.” It shows a cross-sectional view of a switch anchoring setup. At the top, there is a horizontal beam labeled “Outside of Front to Rear Channel,” located 4″ from center of anchor bolt. Below the beam, an anchor bolt system is depicted. The anchor bolts and clamps are shown attaching into the concrete. The drawing indicates dimensions, such as “1 ¾” inches from the surface to the top of the bolt. The concrete pad is dotted, suggesting a textured surface. Lines indicate grout applied around the perimeter of the base.
