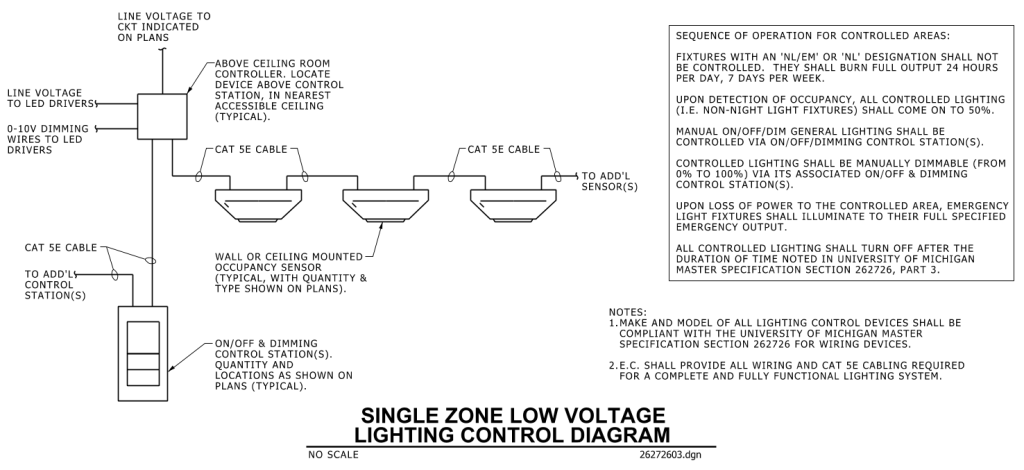

26272603 – Single Zone Low Voltage Lighting Control Diagram

A technical diagram titled “Single Zone Low Voltage Lighting Control Diagram.” It visually represents the configuration and wiring of a lighting control system. Central to the diagram is a series of rectangular and circular symbols connected by lines, indicating wiring paths. The diagram includes components such as LED drivers, control stations, and occupancy sensors, linked by CAT 5E cables. These connections are annotated with text for clarity, indicating functions such as “Line voltage to LED drivers” and “To add’l sensor(s).” The image also features a boxed section on the right with a detailed sequence of operations for controlled lighting areas, including instructions for occupancy detection and emergency lighting. Below this section, additional notes concerning compliance and wiring requirements are provided.
