26510010 – Recessed Emergency Lighting Fixture

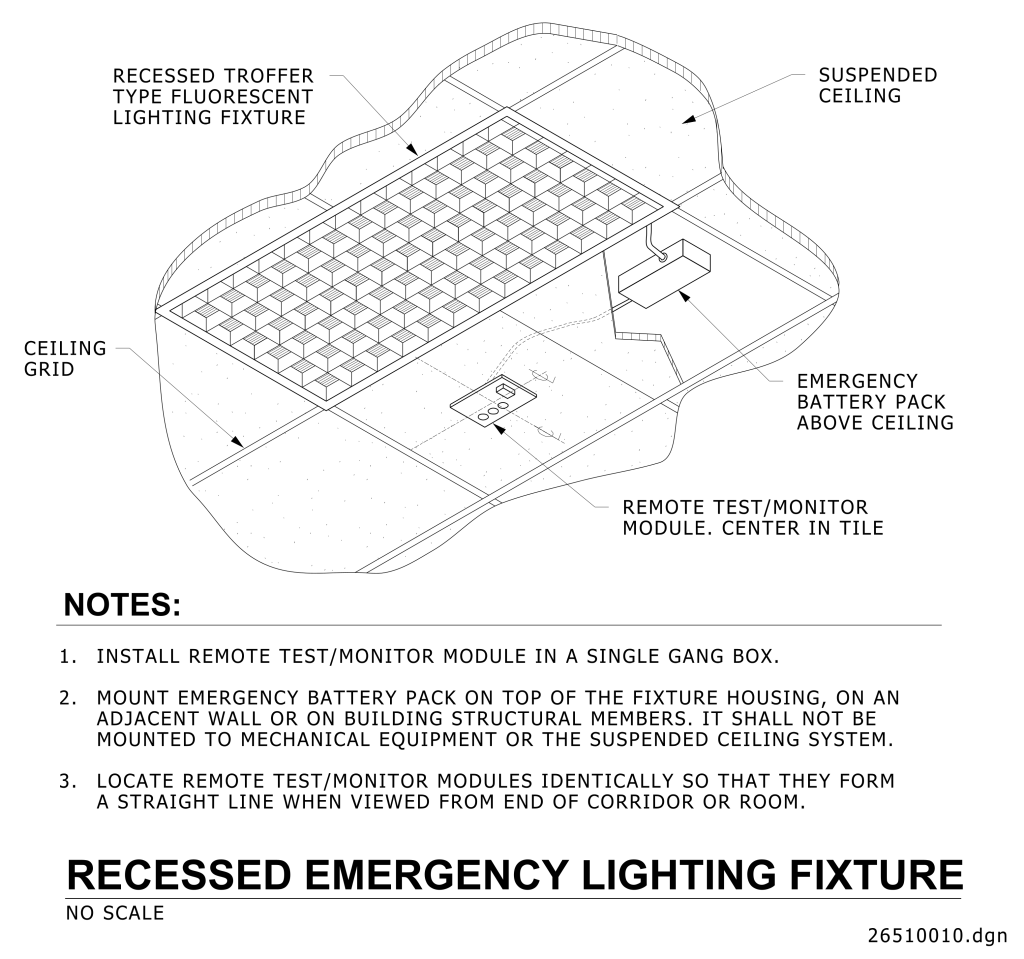

A technical drawing of a recessed emergency lighting fixture integrated into a ceiling grid. The central feature is a rectangular recessed troffer type fluorescent lighting fixture composed of a grid pattern. Surrounding the fixture are labels indicating the “recessed troffer type fluorescent lighting fixture” and “suspended ceiling.” An “emergency battery pack above ceiling” is depicted to the right of the light fixture, with a connecting line to the lighting fixture, suggesting placement above the ceiling tiles. A “remote test/monitor module” is shown centered in one of the ceiling tiles.
