26560003 – Pedestrian Pole Base Against Seatwall

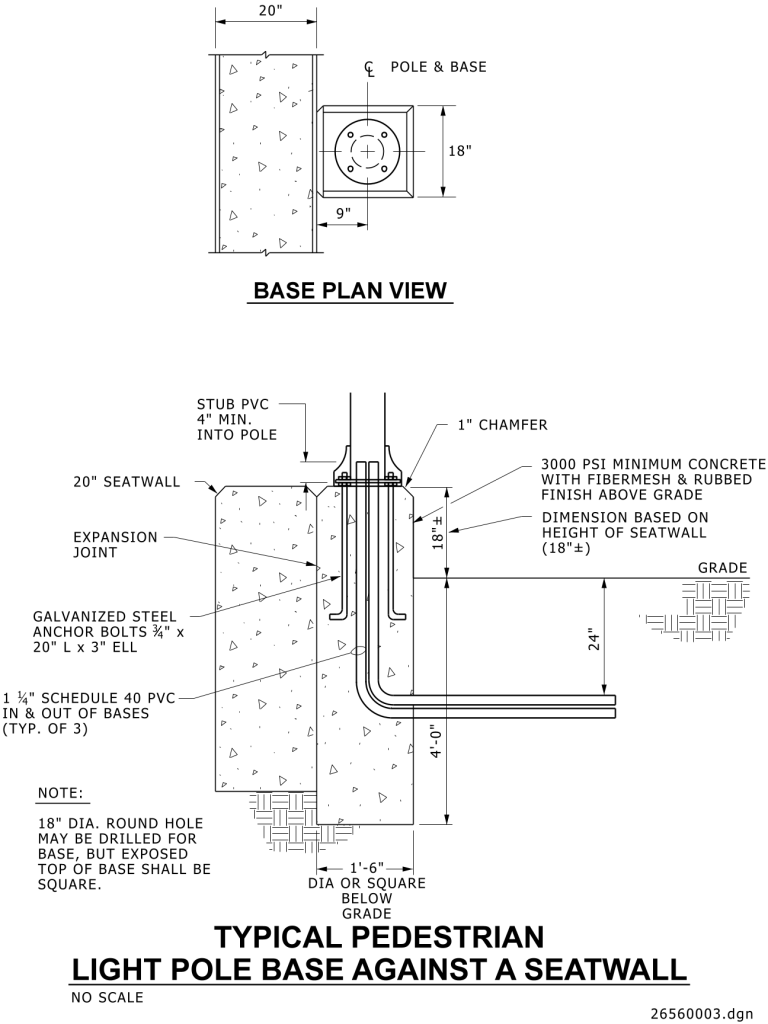

A technical drawing illustrating a “Typical Pedestrian Light Pole Base Against a Seatwall.” The top section labeled “Base Plan View” shows a top-down view of a concrete seat wall with dimensions. The wall is 20 inches wide, and and adjacent to it is an 18-inch square base designated for a pole. The lower part of the image provides a section of the seat wall and light pole base. The wall is shown to be 18 inches tall with a 1-inch chamfer and notes detail the construction materials, like 3000 PSI minimum concrete with fibermesh and rubbed finish above grade. Several other specifications for the pole installation are included, such as galvanized steel anchor bolts and PVC placements.
