26560006 – Typical Pole Wiring Detail

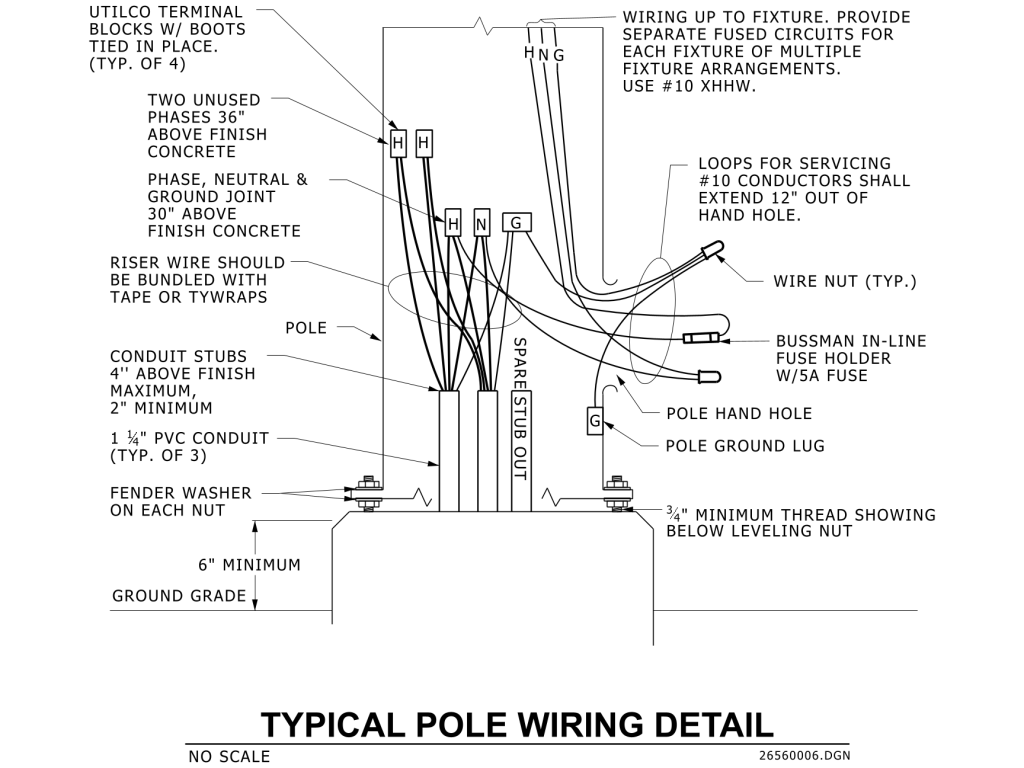

A technical diagram labeled “Typical Pole Wiring Detail” illustrating the wiring setup for a utility pole. The diagram includes various annotations indicating different components and their positions relative to the pole and ground. At the top, a vertical pole is depicted with markers for phases labeled “H,” “N,” and “G.” Two phases are noted as unused, positioned 36 inches above finished concrete, while the phase, neutral, and ground joint is 30 inches above. The diagram shows conduit stubs extending 4 inches above finished concrete, with specifications for a 1 ¼ inch PVC conduit. Elements like wire nuts, loop service conductors, and a Bussman in-line fuse holder with a 5A fuse are detailed. A riser wire is indicated to be bundled with tape or tie wraps. The pole ground lug and hand hole are shown, with assembly instructions including guidelines for fender washers, minimum ground clearance, and threading requirements.
