Detail Text Description

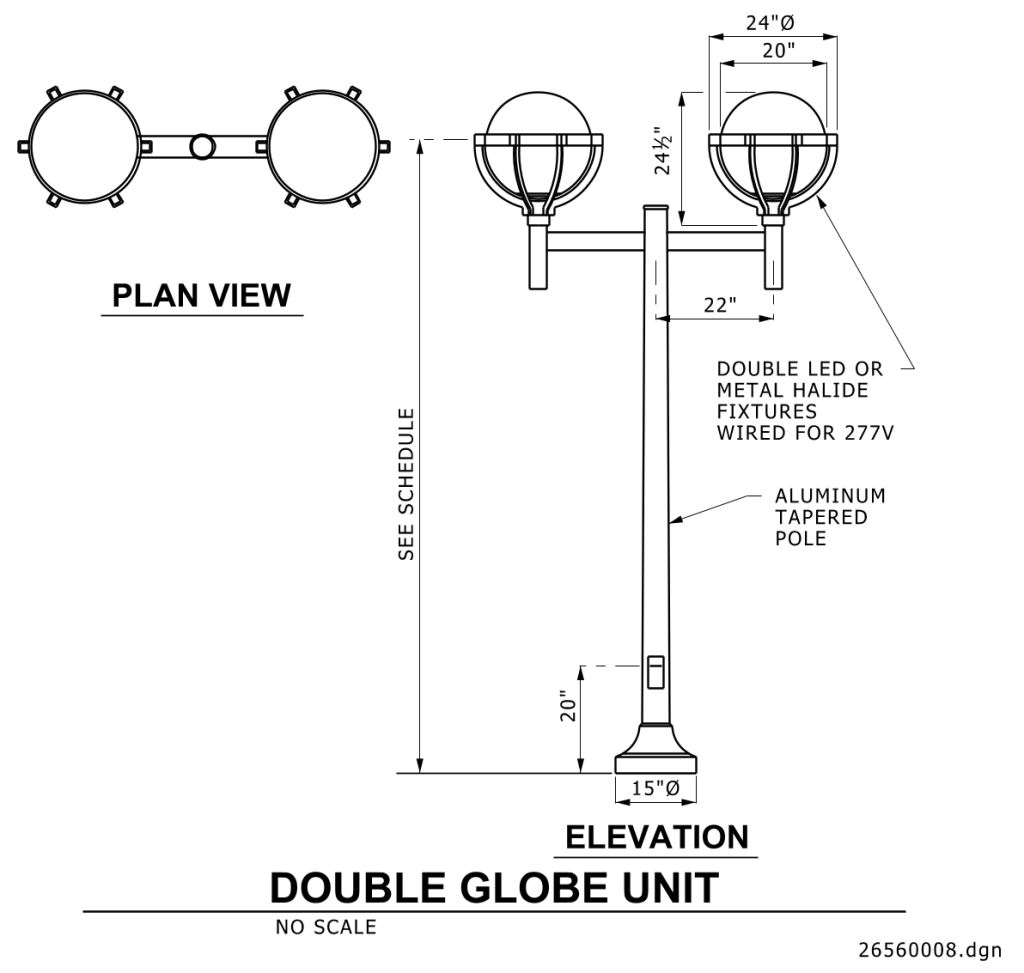

A technical drawing of a double globe light fixture with both plan and elevation views. In the plan view, two spherical light fixtures are connected by a horizontal bar. Each fixture appears symmetrical with multiple attachment points. The elevation view shows one side of the fixture. The globe has a diameter of 20 inches within a 24 inch basket. The pole is labeled as an “ALUMINUM TAPERED POLE” with a hand hole that is approximately 20 inches above the pole base. The pole has a base diameter of 15 inches, with a pole height of 20 inches below the attachment arm that extends 22 inches from the pole. Annotations mention the option for double LED or metal halide fixtures wired for 277 volts.
Additional Formats
Additional formats provided for print or third party applications:
