Detail Text Description

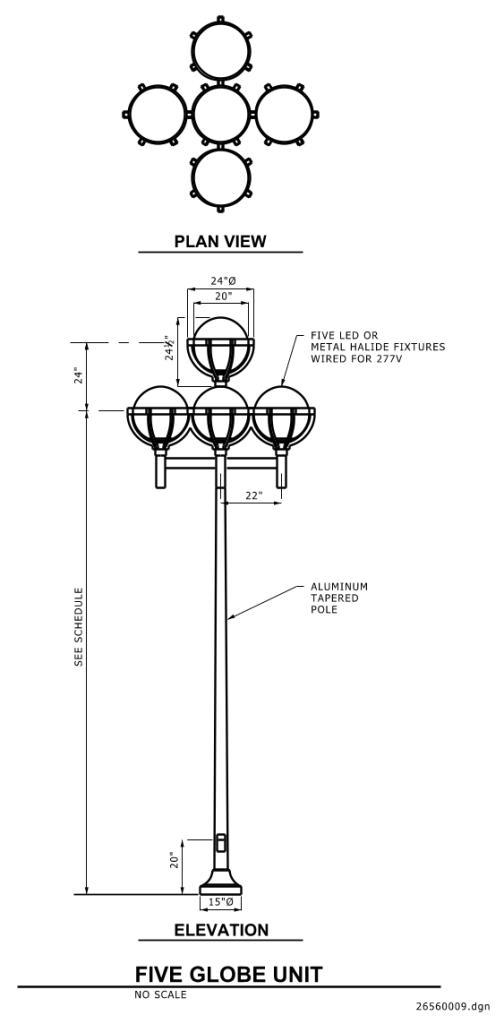

A technical drawing of a five-globe light fixture. The top section shows a plan view with five circular fixtures arranged in a cross pattern, each fixture denoted by a circle with small protrusions, labeled as 24 inches in diameter. Below, an elevation view displays the fixtures supported atop an aluminum tapered pole. The center globe sits higher, while four globes are positioned below it. Measurements include a 24 inch diameter for each light basket, a 22-inch separation between fixture vertical centerlines, and the entire unit being mounted on a pole with a base diameter of 15 inches.
