26560016 – Pedestrian Light Wall Mounted

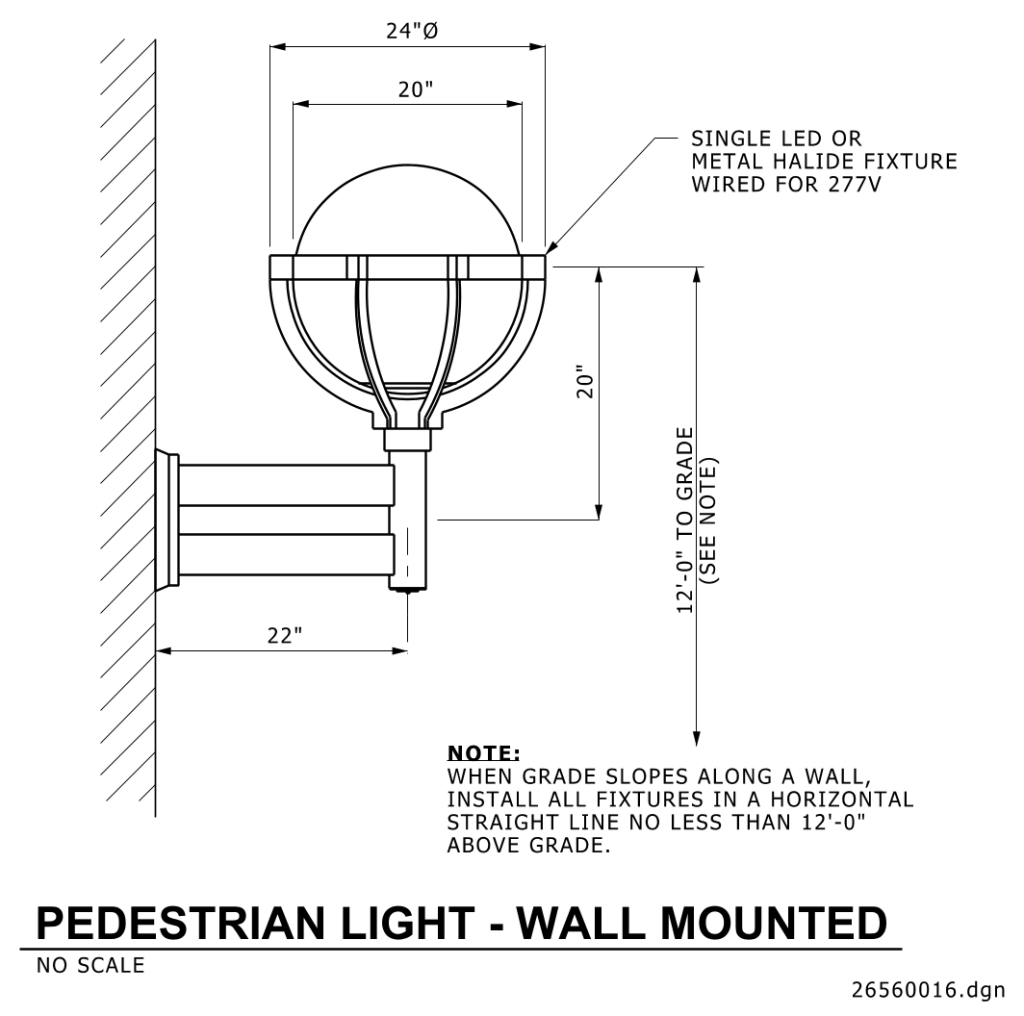

A technical drawing of a wall-mounted pedestrian light fixture. It features a spherical light encased in a metal basket with dimensions marked for reference. The center line of the fixture extends horizontally 22 inches from a wall. The basket has a diameter of 24 inches and the fixture globe is 20 inches wide. The fixture needs to be mounted 12 feet above the ground. Annotations indicate the light can be either a single LED or a metal halide fixture wired for 277 volts. The drawing includes guidelines for installation on sloped surfaces.
