Detail Text Description

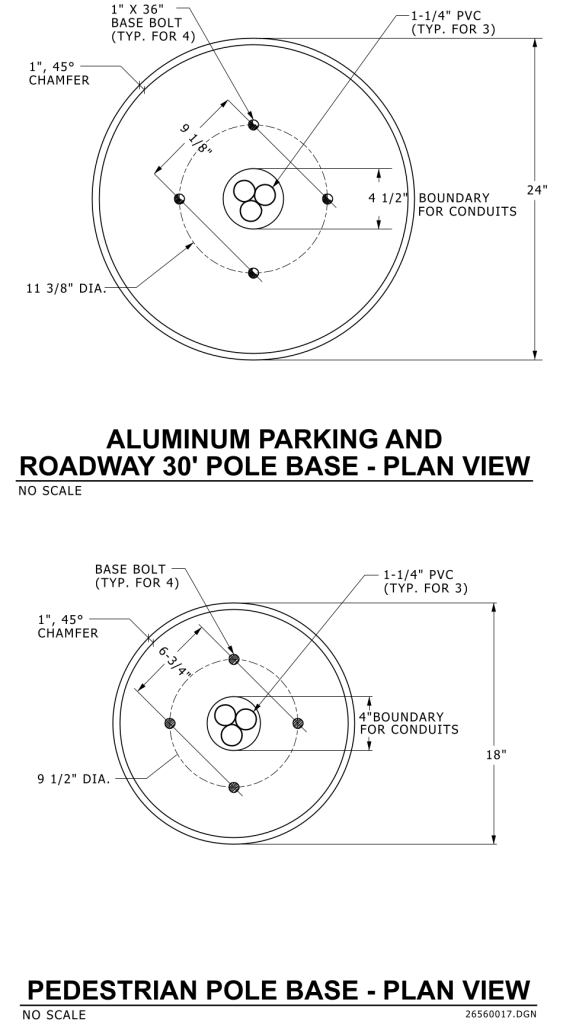

Two technical plan views of pole bases. The top half shows an “Aluminum Parking and Roadway 30′ Pole Base,” while the bottom half depicts a “Pedestrian Pole Base.” Both diagrams are circular. The top diagram includes dimensions such as a 24-inch diameter with a marked boundary for conduits within a 4.5 inch diameter at the center and base bolts indicated by symbols, positioned at equal intervals. PVC conduits are detailed with a 1-1/4″ diameter. The bottom diagram has an 18-inch diameter, with a conduit boundary at 4 inches. Base bolts and PVC conduits are similarly marked as on the top diagram.
