Detail Text Description

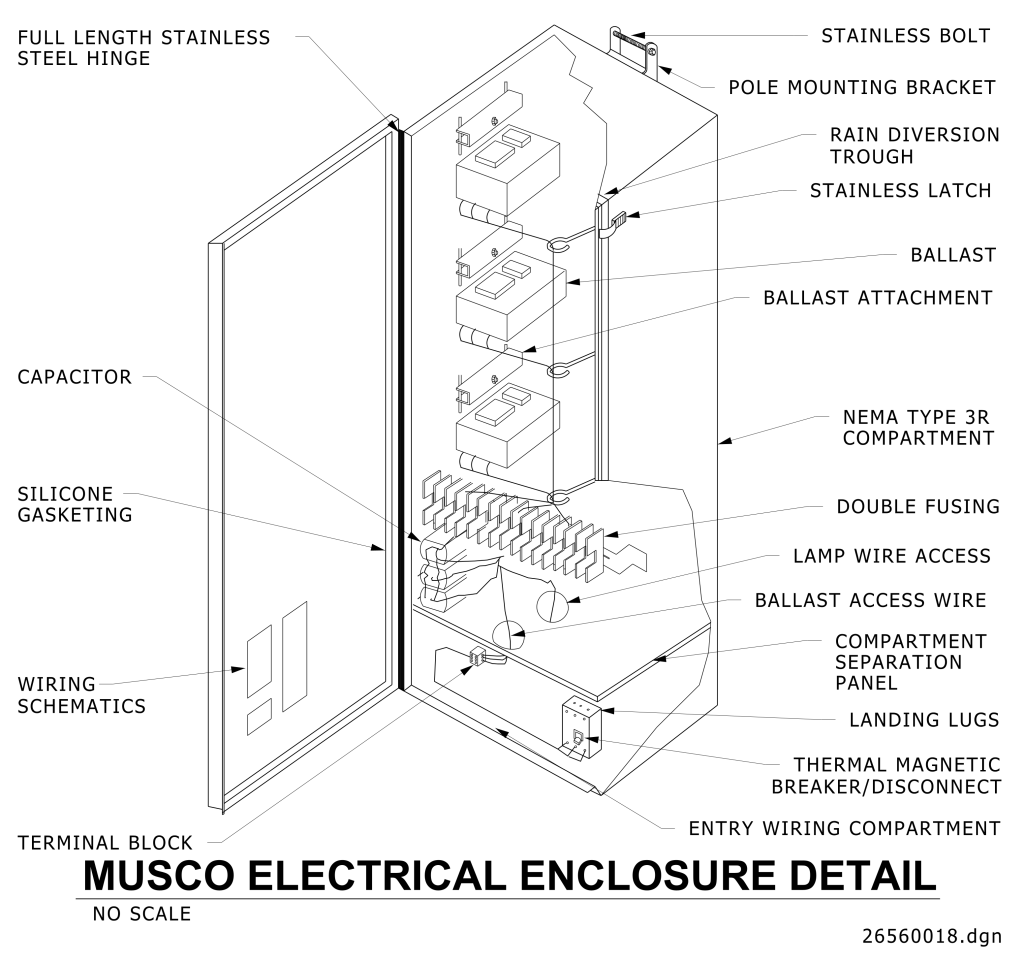

A detailed technical drawing of a Musco electrical enclosure. It shows an open electrical box with various labeled components. The enclosure has a full-length stainless steel hinge on the left side and a pole mounting bracket at the top. Inside, several elements are highlighted, such as capacitors and ballasts arranged vertically with a ballast attachment. Silicone gasketing is indicated, lining the door for sealing. There is a double fusing system with lamp and ballast wire access. A compartment separation panel is present near the bottom, alongside landing lugs and an entry wiring compartment. The terminal block is situated at the bottom left.
Additional Formats
Additional formats provided for print or third party applications:
