Detail Text Description

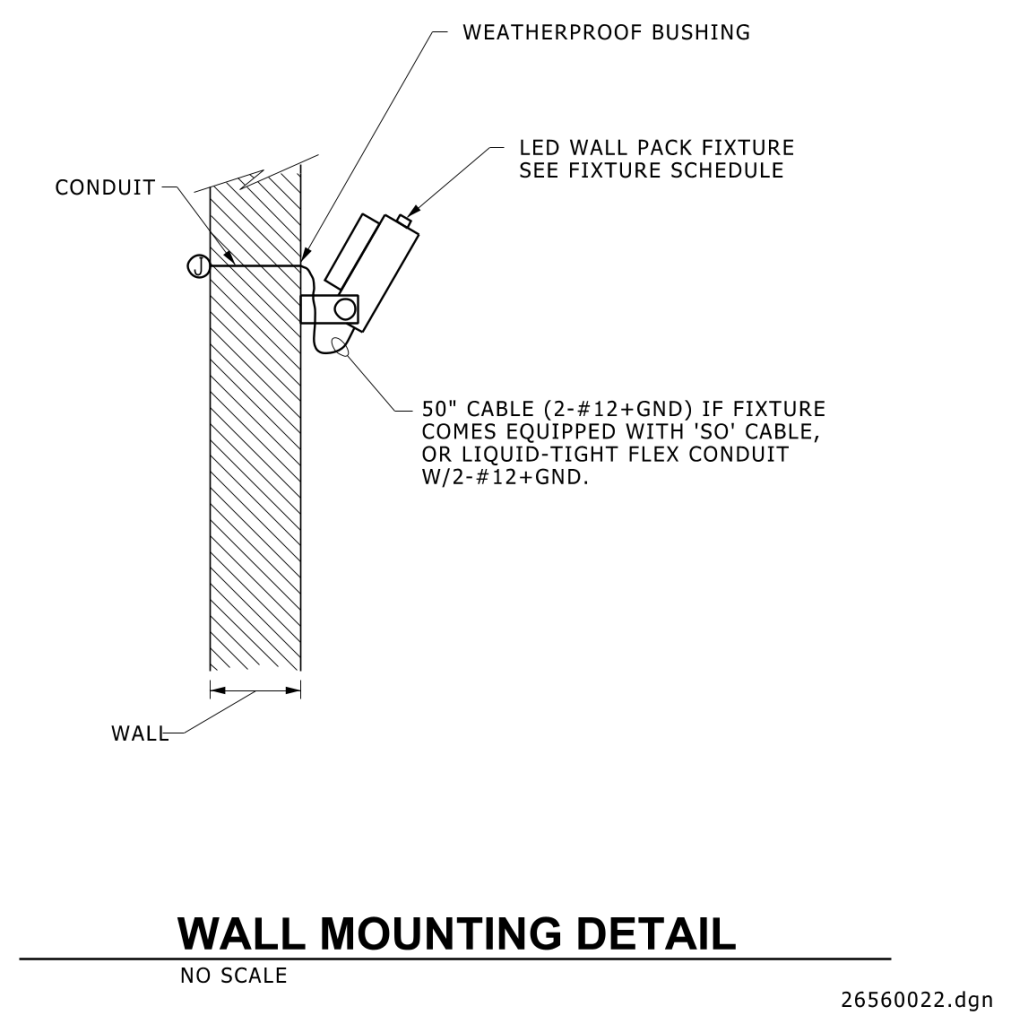

A technical drawing illustrating a wall mounting detail for an LED wall pack fixture. On the left side, a vertical wall is depicted with cross-hatching to indicate a solid structure. The wall pack fixture is shown mounted on a bracket, angled outward from the wall. Several labels with leader lines point to different components: a weatherproof bushing at the end of the conduit, the LED wall pack fixture itself, and a 50-inch cable for electrical connections.
Additional Formats
Additional formats provided for print or third party applications:
