Detail Text Description

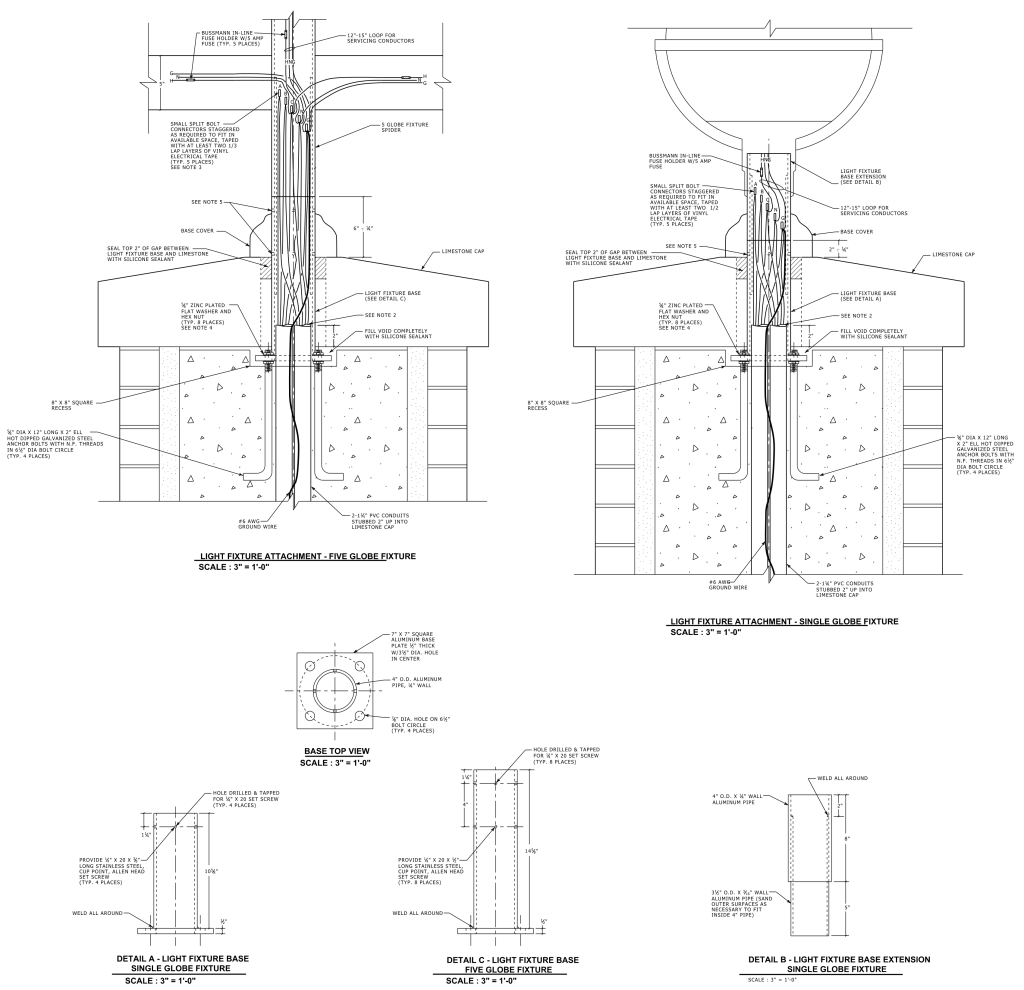

An electrical blueprint detailing the construction and installation of light fixtures. It includes diagrams for two different types of fixtures: a five-globe fixture and a single-globe fixture. Each diagram is drawn in black lines on a white background, featuring cross-sectional views of the fixtures mounted on columns with precise measurements and annotations for construction specifications.
The five-globe fixture on the left shows a cross-section of an assembly with a limestone cap and a base cover, complete with wiring details. The diagram is densely annotated with dimensions and material specifications, such as zinc plating and concrete base housing.
To the right, the single-globe fixture is similar in layout. It also features a limestone cap, base details, and specifications for material use, such as galvanized steel anchor bolts.
Below these main diagrams are three smaller detailed sections labeled A, B, and C, which provide specific measurements and welding points for the base components of the fixtures.
