Detail Text Description

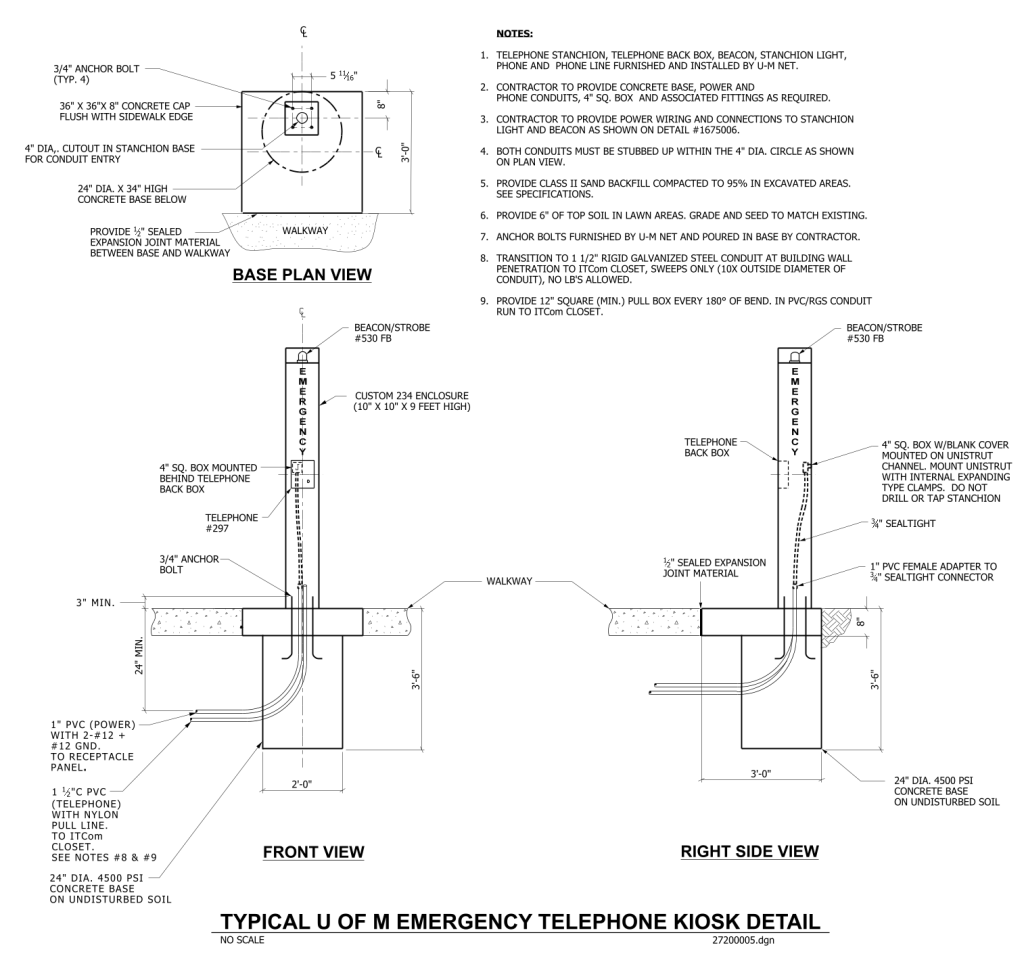

A technical drawing of an emergency telephone kiosk, featuring three main views: base plan view, front view, and right side view. The base plan view shows a top-down perspective of a square concrete base with a circular cutout in the center and dimensions labeled. The concrete cap is marked flush with the sidewalk’s edge, and a walkway is indicated adjacent to the base. The front view displays a vertical cross-section, highlighting the telephone stanchion, back box, and accompanying conduit channels embedded within a concrete base. Various components such as the beacon/strobe, anchor bolts, and telephone are labeled, with dimensions specifying distance and height. The right side view offers an alternate cross-section, detailing conduit placement and marked expansions, such as sealed joint materials along the walkway. Each diagram includes precise measurements to support installation specifications.
