27200007 – Emergency Phone Wall Mount

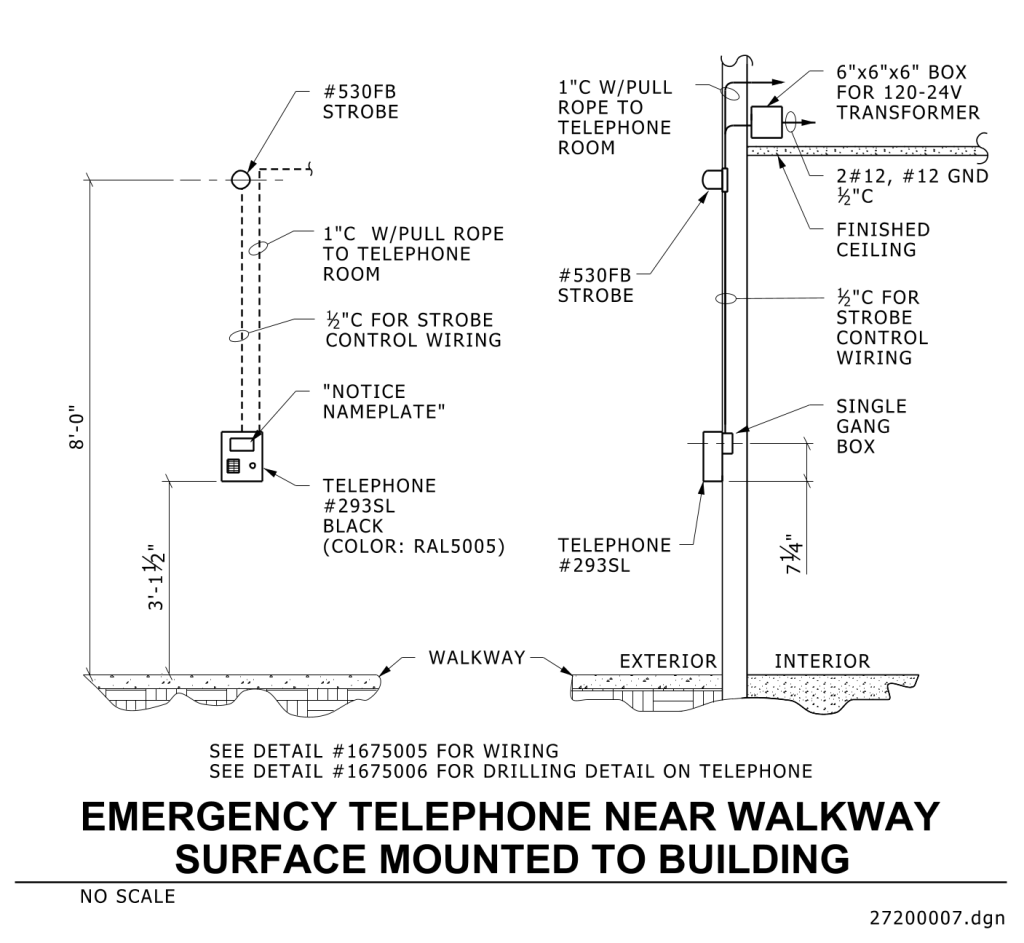

A detailed technical drawing of an emergency telephone setup that is surface mounted to a building near a walkway. On the left side, a vertical 1/2″ conduit feeds the strobe light system (#530FB STROBE) positioned at the top of the telephone setup. Below the strobe is the telephone (TELEPHONE #293SL), depicted as a box with a “NOTICE NAMEPLATE” and labeled in black (COLOR: RAL5005). Height measurements are shown beside the strobe (8′-0″) and the telephone (3′-1½”). A 1″ conduit extends from the telephone to the telephone room. On the right side, the drawing includes a vertical line that runs from the ceiling to the telephone setup, representing electrical wiring and transformer connections. A 6″x6″x6″ box for a 120-24V transformer is shown near the ceiling, with indicators for wiring connections and gang boxes.
