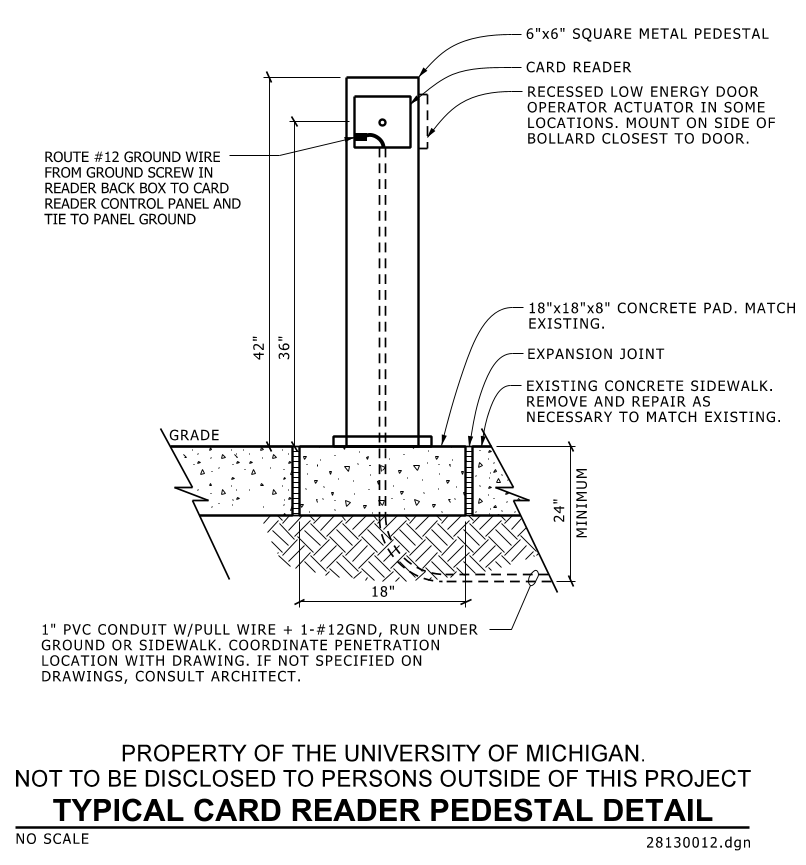

28130012 – Card Reader Pedestal Detail

An electrical blueprint depicting the design of a card reader pedestal. At the center is a 6″x6″ square metal pedestal with a card reader mounted at the top. The pedestal extends from an 18″x18″x8″ concrete pad that matches the existing surface. The concrete pad is set within an area labeled as “existing concrete sidewalk,” and has an expansion joint. The pedestal post is stated to be 42 inches tall, with 36 inches above the grade. Below ground level, the post is supported by a concrete base that extends 24 inches deep. Additional annotations specify the routing of wires and conduits, including a 1″ PVC conduit under the ground for wiring. The drawing emphasizes matching existing conditions when repairing the concrete sidewalk.
