Detail Text Description

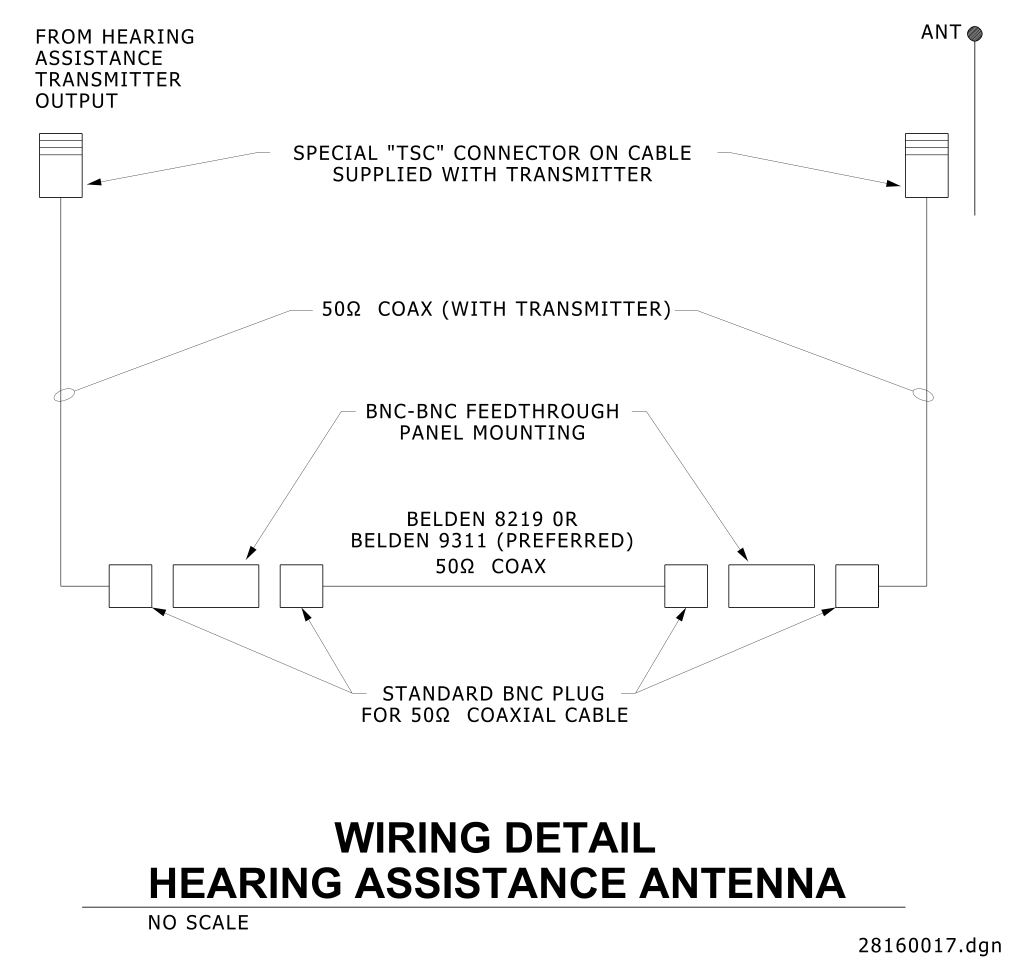

A wiring diagram labeled “WIRING DETAIL HEARING ASSISTANCE ANTENNA.” It depicts the components and connections needed for setting up a hearing assistance antenna system. The diagram features a series of symbols and lines representing cables and connectors. A line originates from a box labeled “FROM HEARING ASSISTANCE TRANSMITTER OUTPUT” leading to a “SPECIAL ‘TSC’ CONNECTOR ON CABLE SUPPLIED WITH TRANSMITTER”. From there, it connects via “50Ω COAX (WITH TRANSMITTER)” to a “BNC-BNC FEEDTHROUGH PANEL MOUNTING.” Another cable, marked as “BELDEN 8219 OR BELDEN 9311 (PREFERRED) 50Ω COAX”, connects with a “STANDARD BNC PLUG FOR 50Ω COAXIAL CABLE” leading towards the top right, marked as “ANT.” The overall layout shows how different cable types and connectors fit into the setup.
