28310010 – Elevator Recall Control Wiring

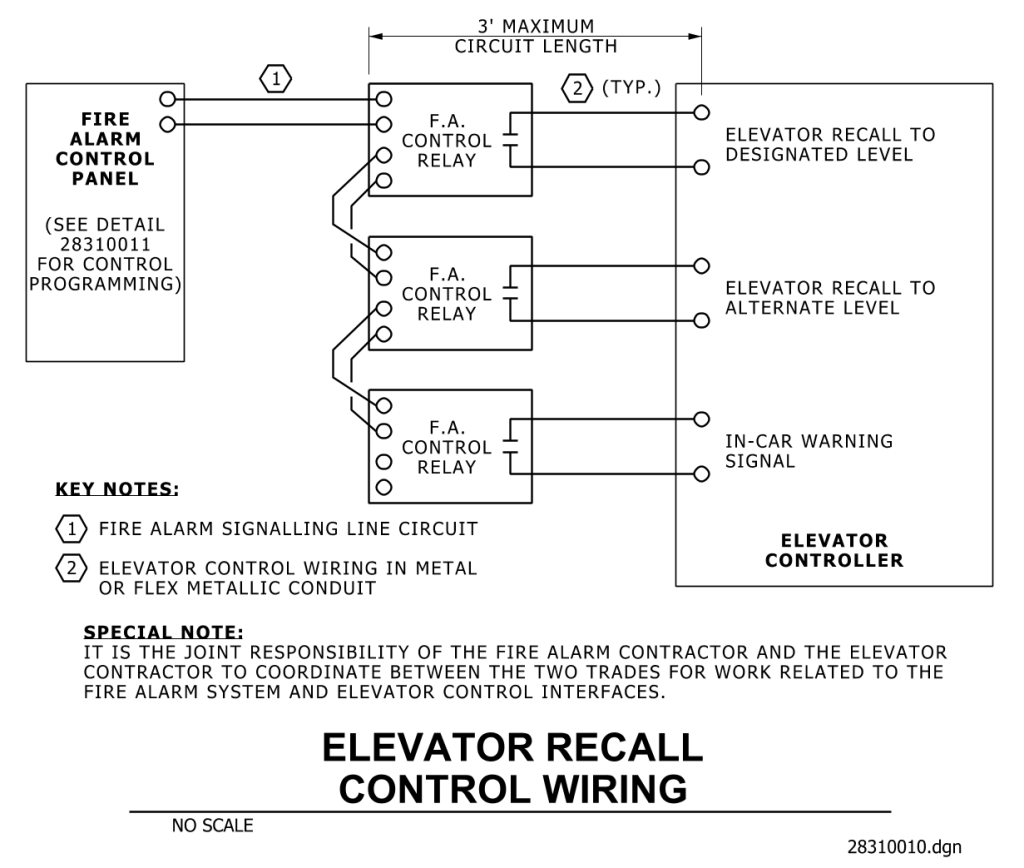

An elevator recall control wiring diagram. On the left, a box labeled “Fire Alarm Control Panel” connects via two parallel lines to three vertically aligned boxes labeled “F.A. Control Relay.” These relay boxes are connected by lines to another box on the right labeled “Elevator Controller,” which has three outputs labeled “Elevator Recall to Designated Level,” “Elevator Recall to Alternate Level,” and “In-Car Warning Signal.” Above the central box arrangement is a note indicating a “3′ Maximum Circuit Length.” Key notes at the bottom explain symbols used: (1) signifies “Fire Alarm Signalling Line Circuit,” and (2) represents “Elevator Control Wiring in Metal or Flex Metallic Conduit.” A special note emphasizes coordination between fire alarm and elevator contractors. The title “Elevator Recall Control Wiring” is centered at the bottom.
