Detail Text Description

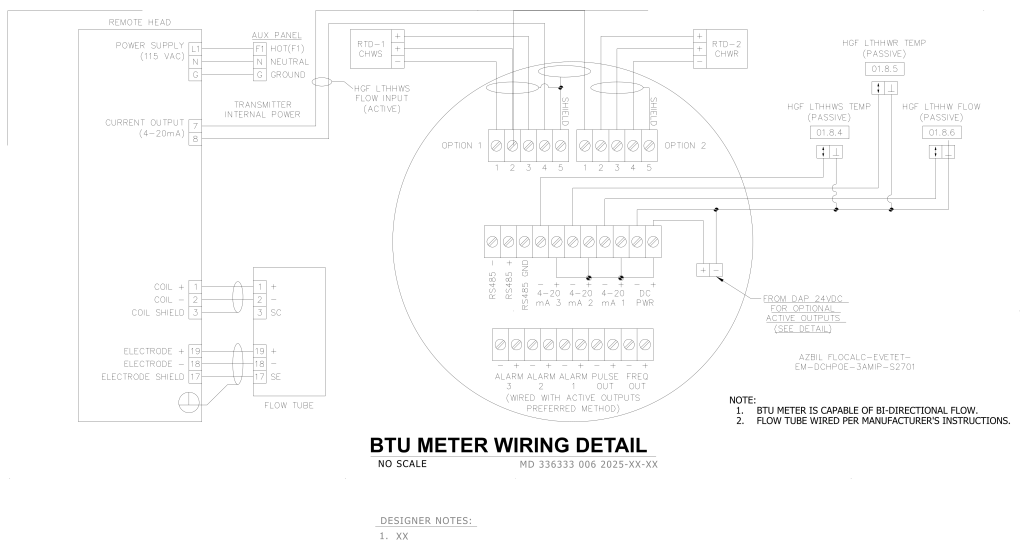

A detailed wiring diagram labeled “BTU Meter Wiring Detail.” It primarily features a large circular section with numerous connectors and labeled wiring points, describing connections for a BTU meter system. To the left, the diagram illustrates connections labeled “Remote Head” with a power supply, and three connections labeled as coil and electrode inputs. The center section, shaped as a circle, features parallel rows of connectors for various inputs and outputs, including options for RS485 communication, alarms, and data pulse outputs. The right side describes connections for temperature and flow, labeled as passive. The diagram includes wiring for auxiliary and internal power and is designed for bi-directional flow, as noted at the bottom.
Additional Formats
Additional formats provided for print or third party applications:
