Detail Text Description

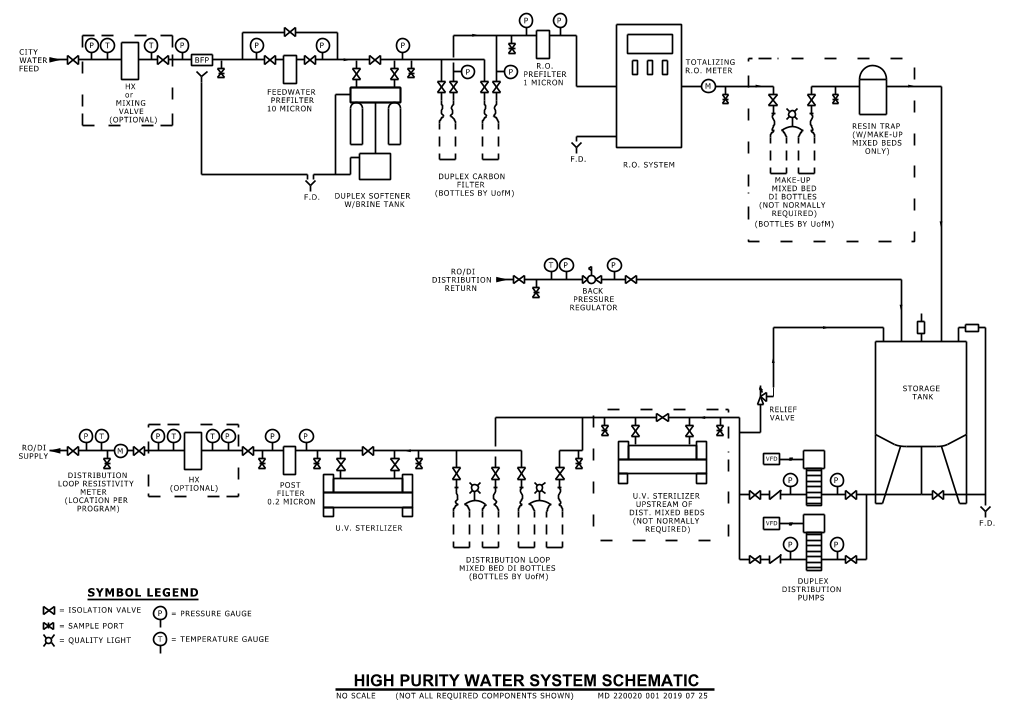

A technical diagram illustrating a high purity water system schematic. Starting from the left, the system begins with a “City Water Feed” connected to various treatment components including a mixing valve, feedwater prefilter, and duplex softener. The process continues through multiple filtration devices like a carbon filter and a reverse osmosis (RO) system. The diagram shows a sequence of pipes leading to a storage tank on the right side. Near the bottom, the RO/DI supply loop includes post-filters, UV sterilizer, and distribution pumps. A symbol legend is included at the bottom left, explaining various symbols representing valves, ports, and gauges.
Additional Formats
Additional formats provided for print or third party applications:
