Detail Text Description

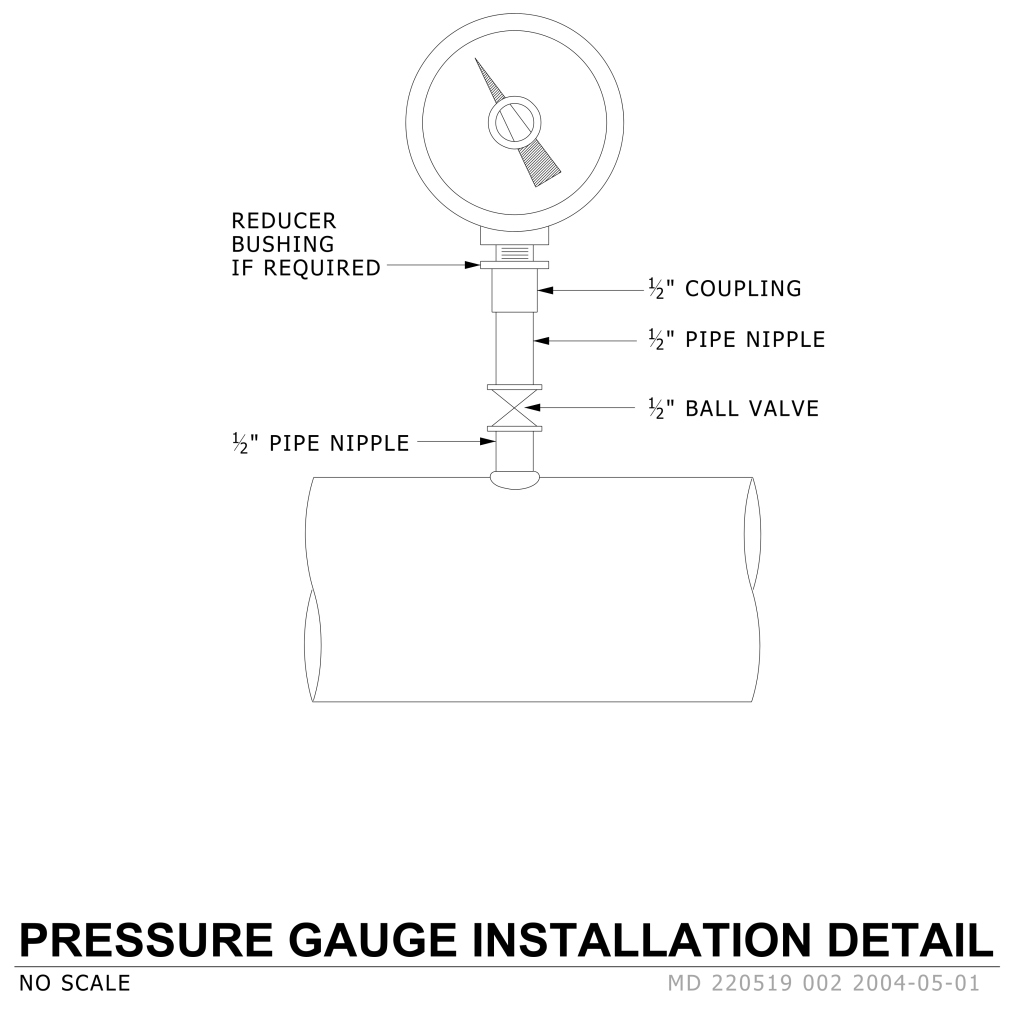

A technical diagram showing the installation details of a pressure gauge connected to a pipe. At the top, a circular pressure gauge is depicted, featuring a needle and labeled dial. Below the gauge, a series of vertical components illustrate the connection to a large horizontal pipe. The components include a reducer bushing if required, a ½ inch coupling, a ½ inch pipe nipple, a ½ inch ball valve, and a second ½ inch pipe nipple attached directly to the main pipe. Each component is labeled with text and arrows indicating their positions in the assembly.
Additional Formats
Additional formats provided for print or third party applications:
