Detail Text Description

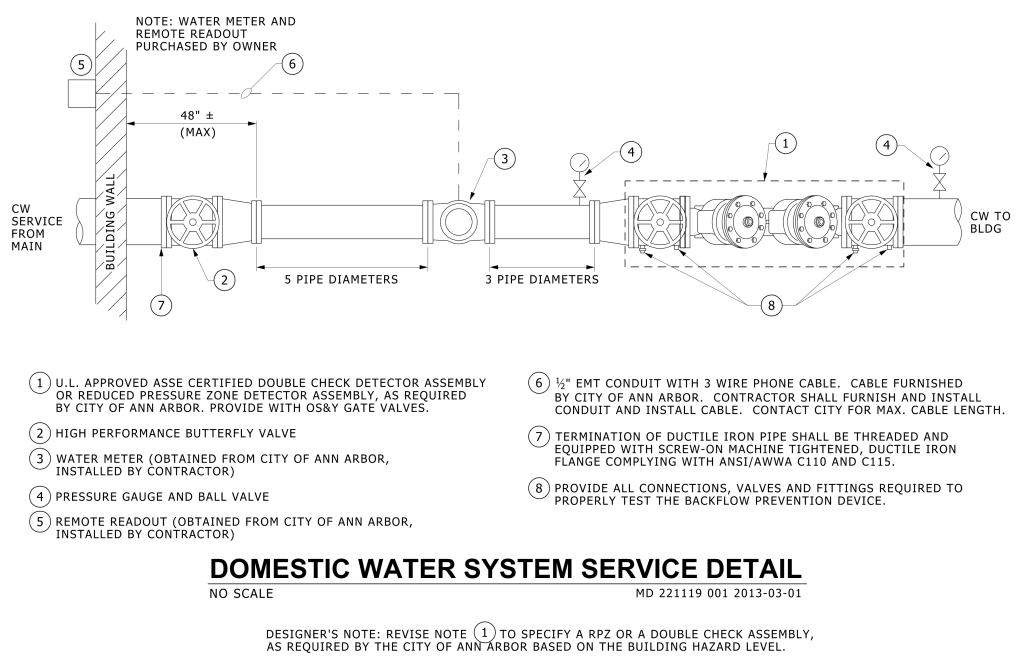

A detailed technical drawing of a domestic water system service. It includes various labeled parts connected in a pipeline arrangement. On the left, the pipeline begins at the building wall labeled “CW Service from Main.” Components include a butterfly valve, a water meter, pressure gauge and ball valve, and two options for detector assemblies. The conduit connects with a phone cable. The drawing specifies dimensions and positioning distances, such as “48 inches max” and “5 pipe diameters.” Notes provide instructions and specifications related to approvals, materials, and installation.
