Detail Text Description

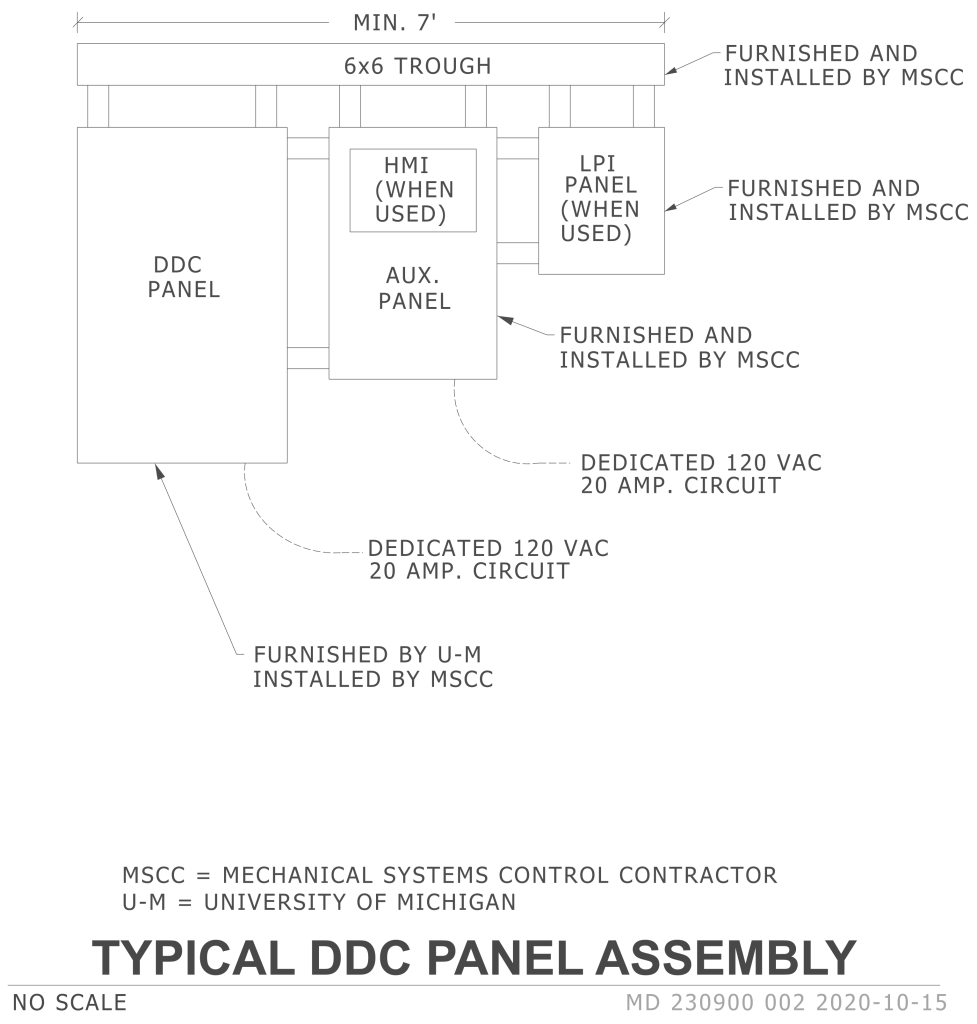

A technical diagram illustrating a typical DDC Panel Assembly. It features a series of rectangular panels labeled DDC Panel, HMI Panel (when used), LPI Panel (when used), and Aux. Panel, all connected beneath a 6×6 trough. Each panel is accompanied by dashed lines indicating dedicated 120 VAC 20 Amp circuits. Labels indicate that the panels are furnished and installed by various entities such as MSCC and U-M.
