Detail Text Description

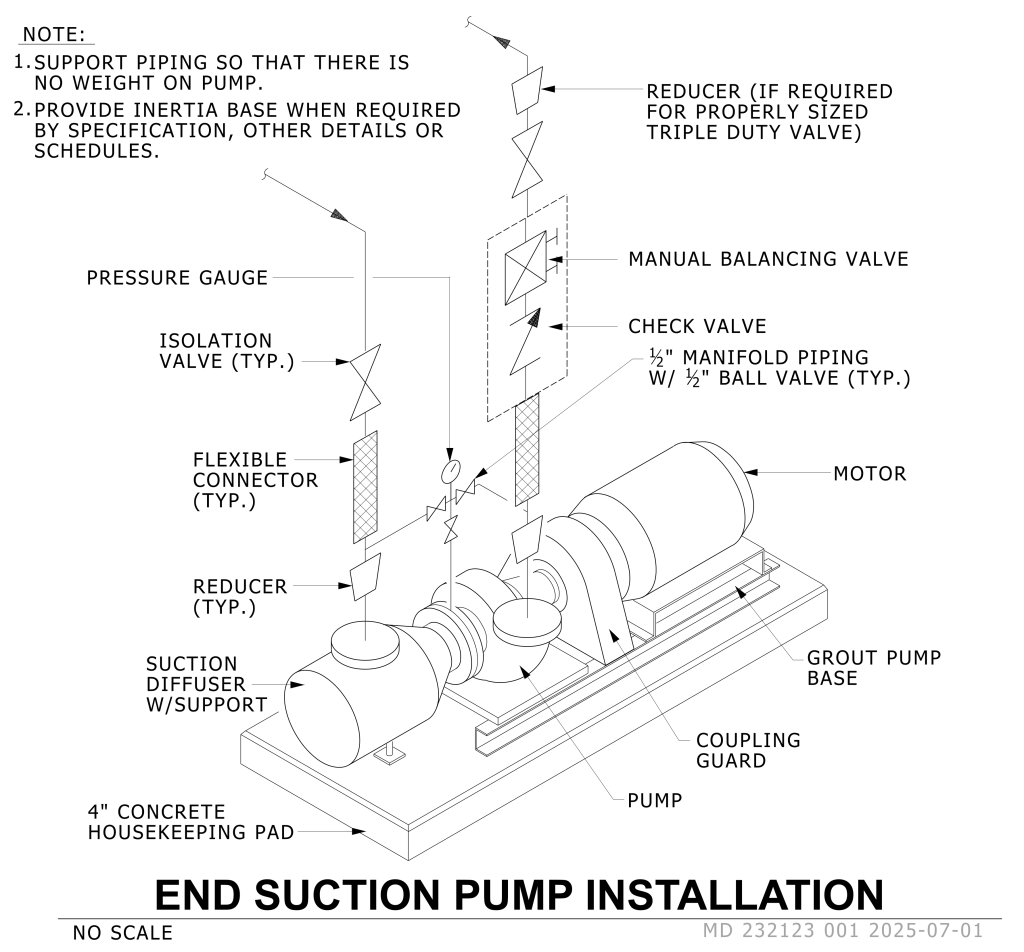

A technical diagram illustrating the components and layout of an end suction pump installation. The diagram features a three-dimensional perspective of the pump system mounted on a rectangular 4-inch concrete housekeeping pad. Key components include a motor, a pump, and a suction diffuser with support. A coupling guard connects the motor and pump. Flexible connectors, reducers, and various valves are integrated into the piping system, including a pressure gauge, isolation valve, manual balancing valve, and check valve. An optional reducer for a triple duty valve is indicated by a dashed box. The diagram also notes a grout pump base beneath the assembly. Arrows illustrate the flow direction of fluids, and annotations label each component.
