MD 232123 004 Inline Pump and Piping

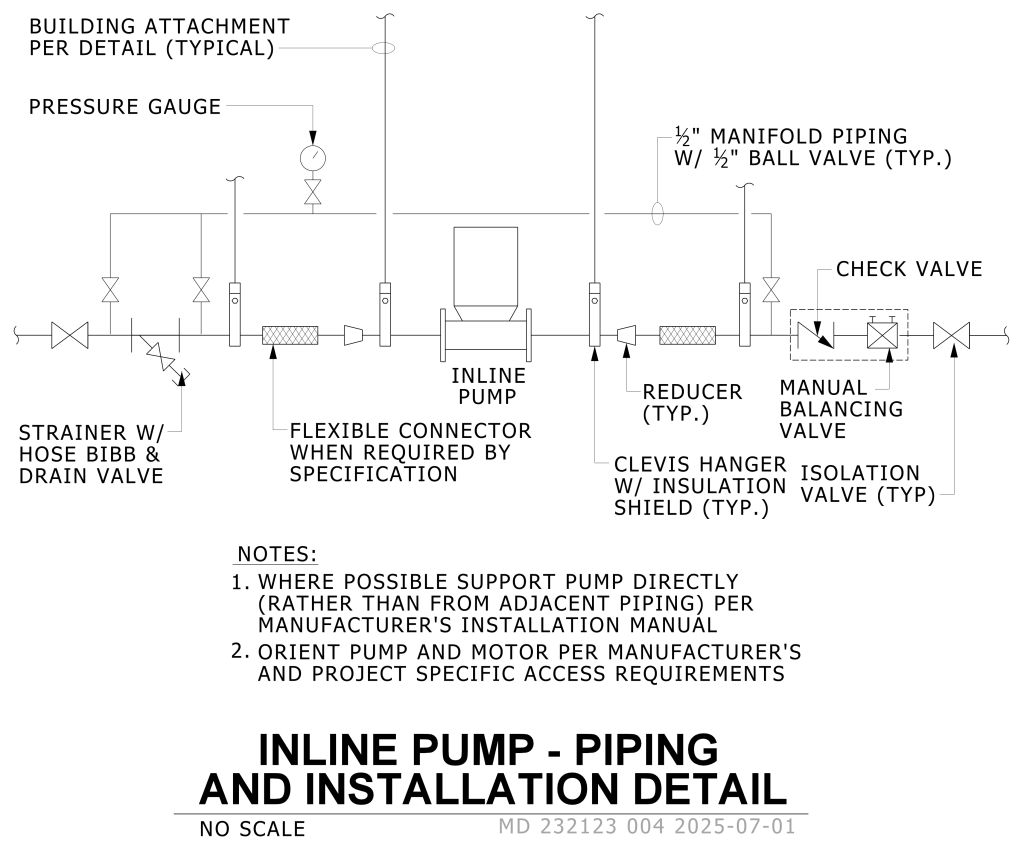

A detailed engineering diagram of an inline pump piping and installation system. It features a series of interconnected components laid out horizontally. From left to right, the diagram includes a strainer with a hose bibb, and a drain valve, a flexible connector, an inline pump, and various fittings such as a reducer, a check valve, a manual balancing valve, and an isolation valve. Additional features include a clevis hanger with insulation shield and manifold piping with ball valves and a pressure gauge. The components are labeled with specific instructions. At the bottom, there are notes detailing installation recommendations.
