Detail Text Description

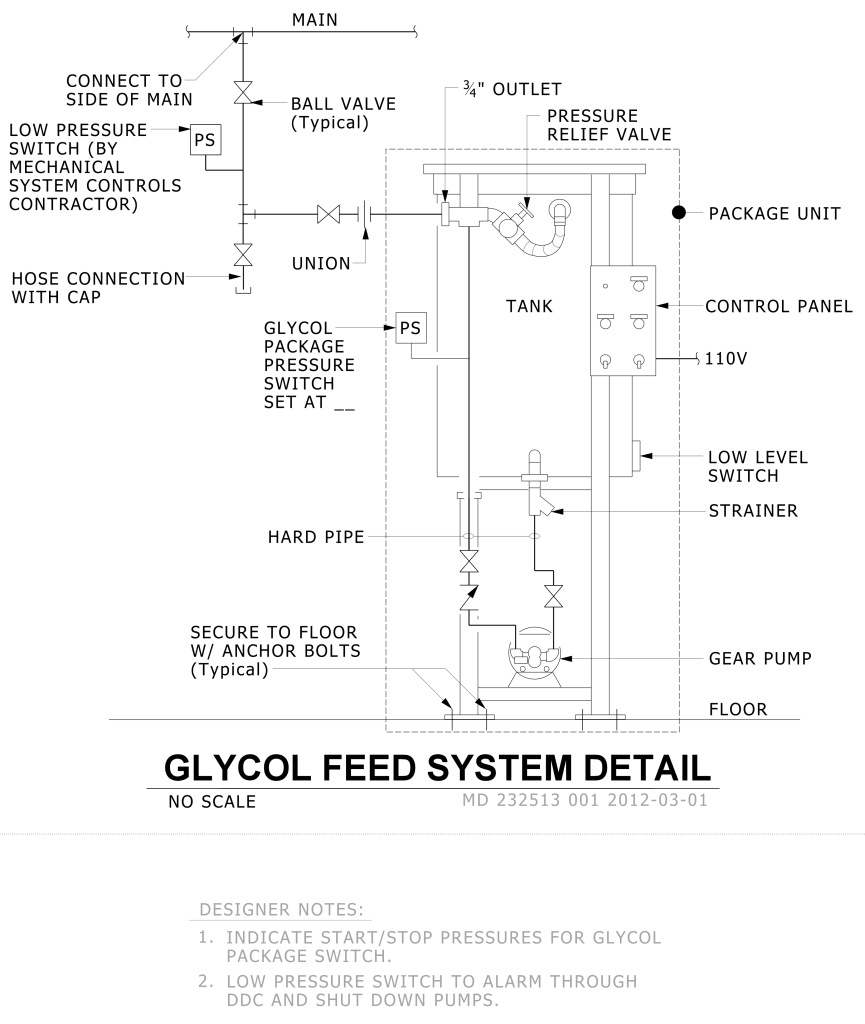

A technical diagram of a glycol feed system. Package unit includes the tank, 110V control panel, glycol package pressure switch, gear pump, low level switch, and several other components. Tank is connected to main line with 3/4″ outlet, pressure relief valve, and low pressure switch by mechanical system controls contractor. The system is secured to the floor with anchor bolts.
