MD 236500 002 Seasonal Tower Piping

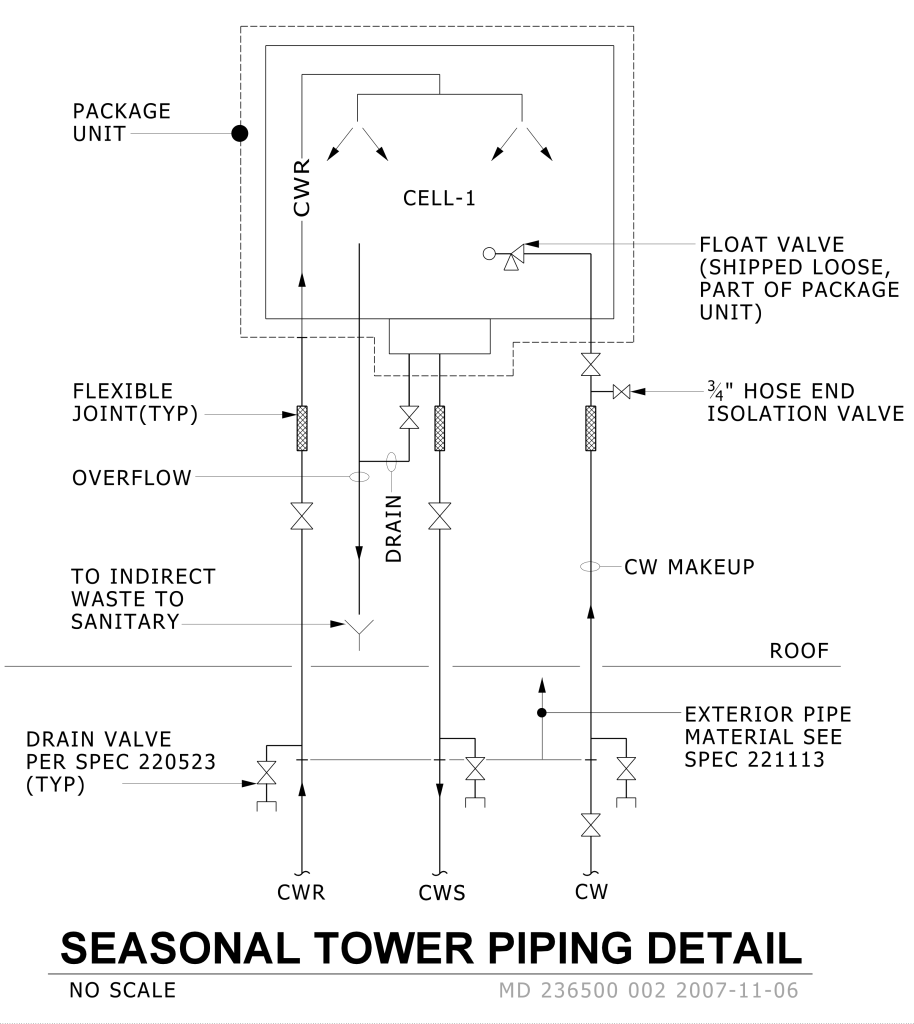

A technical diagram titled “Seasonal Tower Piping Detail.” It features a layout of a piping system related to a cooling tower. The diagram includes various components such as a “PACKAGE UNIT,” labeled at the top left, showing CELL-1 connected with “CWR” (Cooling Water Return) and “CWS” (Cooling Water Supply) lines. A “FLOAT VALVE” marked as part of the package unit is shown on the right. Below, multiple lines are labeled “DRAIN,” “OVERFLOW,” “CW MAKEUP,” and include symbols for valves and joints. At the bottom, a “DRAIN VALVE PER SPEC 220523 (TYP)” and “TO INDIRECT WASTE TO SANITARY” are specified. Labels and arrows indicate the flow direction throughout the system. The drawing includes notes specifying types of joints and materials, such as “FLEXIBLE JOINT(TYP)” and “EXTERIOR PIPE MATERIAL SEE SPEC 221113.”
