Detail Text Description

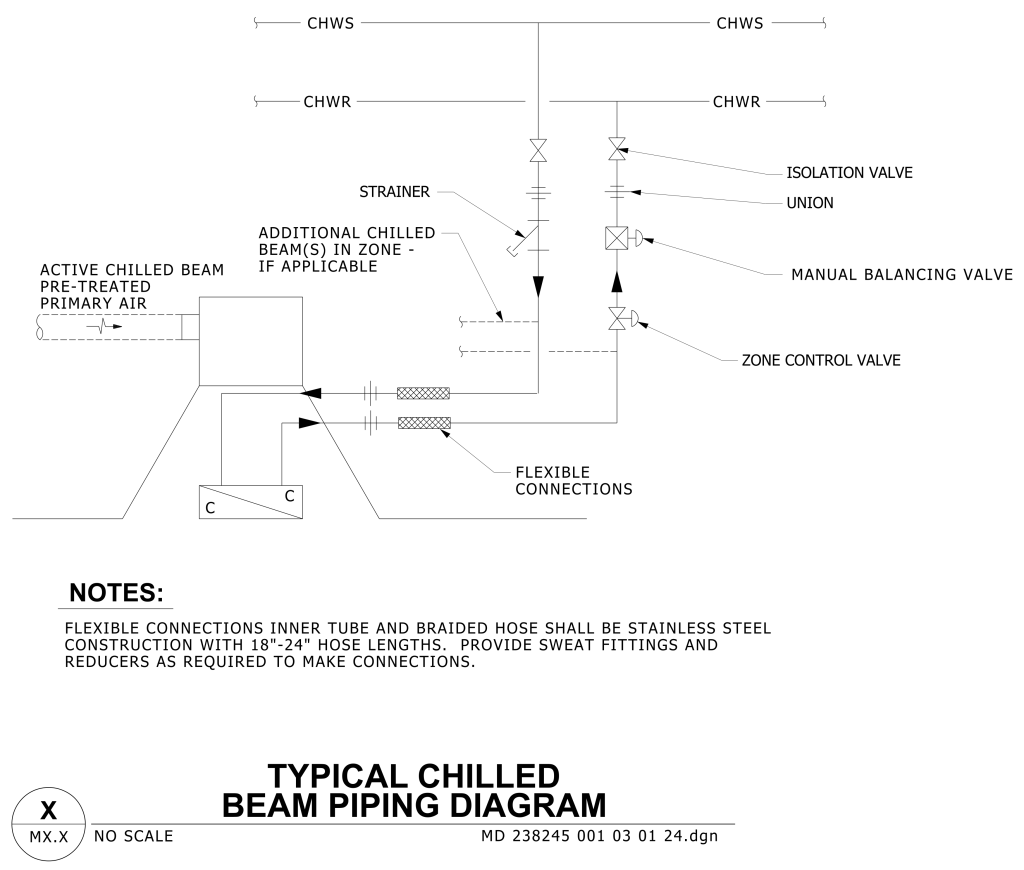

A technical diagram of a typical chilled beam piping system. It features lines and various symbols representing components like valves and connections. The diagram shows two horizontal lines labeled “CHWS,” (Chilled Water Supply) and “CHWR” (Chilled Water Return). Components such as shut off valves, strainer, isolation calve, union, manual balancing valve, flexible connections, and zone control valve” are indicated with directional arrows and labels. The pipes go to the cooling coil section of the chilled beam. From the chilled beam is a duct labeled “Active Chilled Beam Pre-treated Primary Air.” The bottom section includes notes on construction specifications and a title.
