Detail Text Description

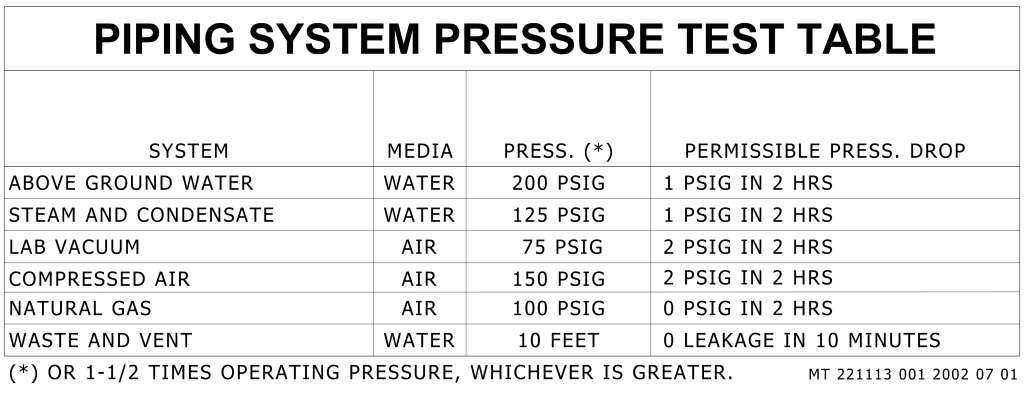

A table titled “Piping System Pressure Test Table.” The table contains columns for “System,” “Media,” Pressure (*)” and Permissible Pressure Drop. Each row lists different systems with their corresponding media, pressure, and allowable pressure drop over specific time periods. The systems include “Above Ground Water,” “Steam and Condensate,” “Lab Vacuum,” “Compressed Air,” “Natural Gas,” and “Waste and Vent.” The table also includes a footnote marked with an asterisk, explaining pressure conditions.
Additional Formats
Additional formats provided for print or third party applications:
