Thickened Edge Walk Detail

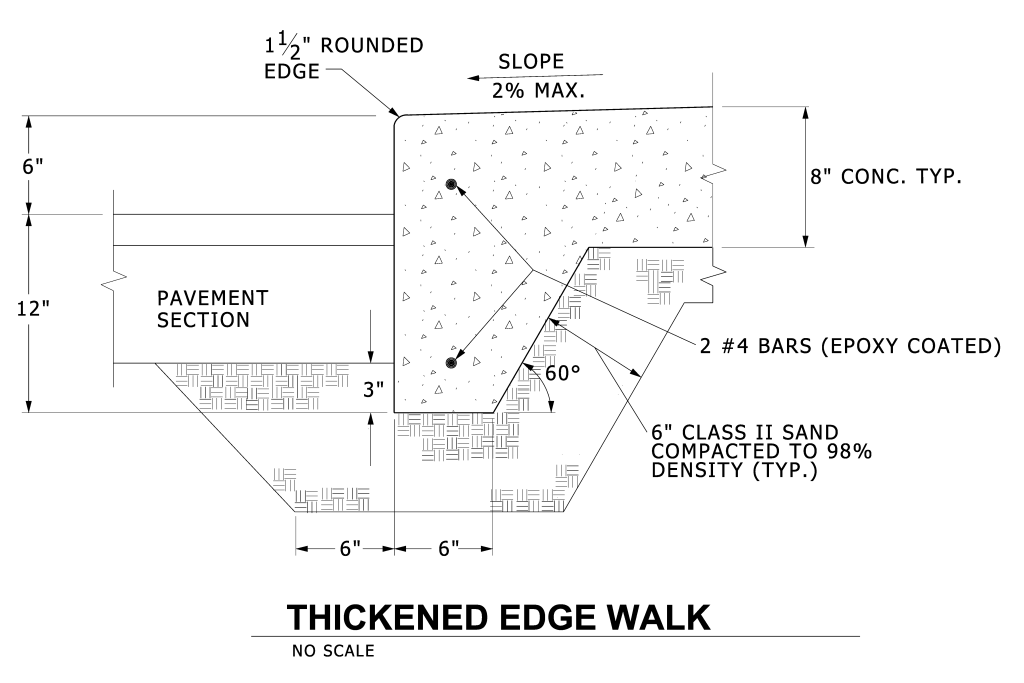

A technical architectural drawing illustrating a cross-section of a thickened edge walk. The drawing shows a pavement section with detailed measurements and structural features. The top right corner has a note indicating a slope labeled “SLOPE 2% MAX.” The edge of the pavement is rounded, with a note indicating a “1½” ROUNDED EDGE.” The main pavement section is marked 12 inches in depth and 6 inches above pavement, with the note “PAVEMENT SECTION.” Part of the section consists of 6 inches of Class II sand compacted to 98% density, tapering at a 60-degree angle. Concrete walk is 8″ thick with two #4 epoxy-coated bars in the thickened portion. The bottom of the drawing has the title “THICKENED EDGE WALK,” and the note “NO SCALE” appears beneath it.
