TK – 05

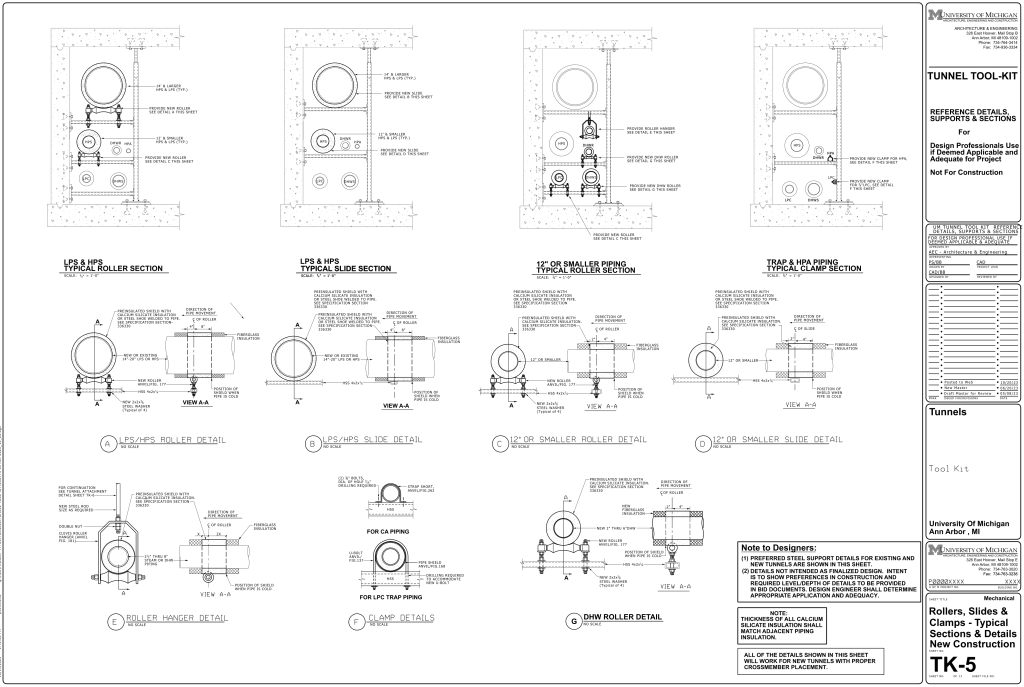

A detailed engineering drawing from a “Tunnel Tool-Kit” labeled “TK-5”, focusing on reference details, supports, and sections for various piping configurations. The layout is divided into multiple sections, each depicting a different piping detail. At the top, there are four main sections labeled: “LPS & HPS Typical Roller Section,” “LPS & HPS Typical Slide Section,” “12” or Smaller Piping Typical Roller Section,” and “Trap & HPA Piping Typical Clamp Section.” Each of these main sections includes detailed technical drawings with side views, showing the specific engineering configurations.

Below these sections, there are additional detailed views labeled: “LPS/HPS Roller Detail,” “LPS/HPS Slide Detail,” “12” or Smaller Roller Detail,” “12” or Smaller Slide Detail,” “Roller Hanger Detail,” and “Clamp Details.” The drawings include annotations, measurement scales, directional arrows, and cross-sectional views.
