Detail Text Description

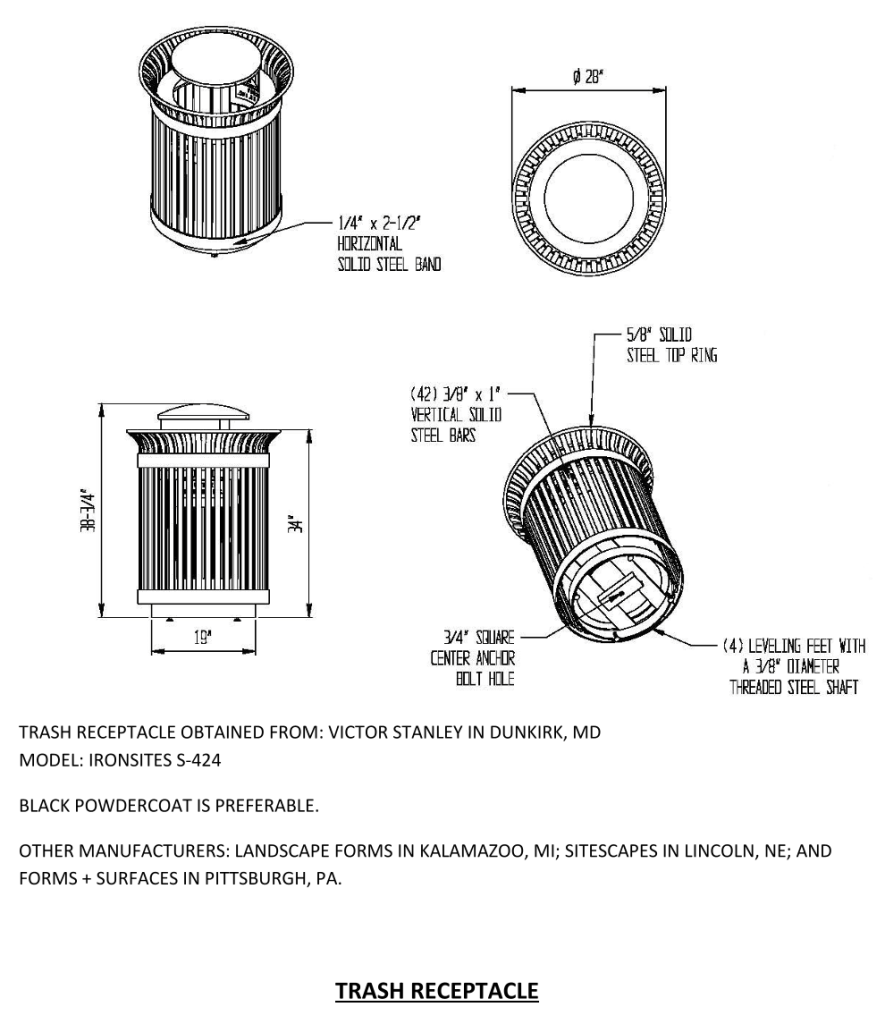

A technical drawing of a cylindrical trash receptacle. The top-left view shows the trash can from the side, featuring vertical solid steel bars and labeled dimensions, including a height of 38.75 inches and a diameter of 19 inches for the base. A horizontal solid steel band, measuring 1/4 inch by 2.5 inches, reinforces the structure. The top-right view is a top-down perspective with a diameter measurement of 28 inches. The bottom-right view is an angled perspective highlighting a 5/8-inch solid steel top ring, 42 vertical 3/8-inch solid steel bars, and four leveling feet with a 3/8-inch diameter threaded steel shaft. A 3/4-inch square center anchor bolt hole is also indicated.
