Concrete Wheel Stops

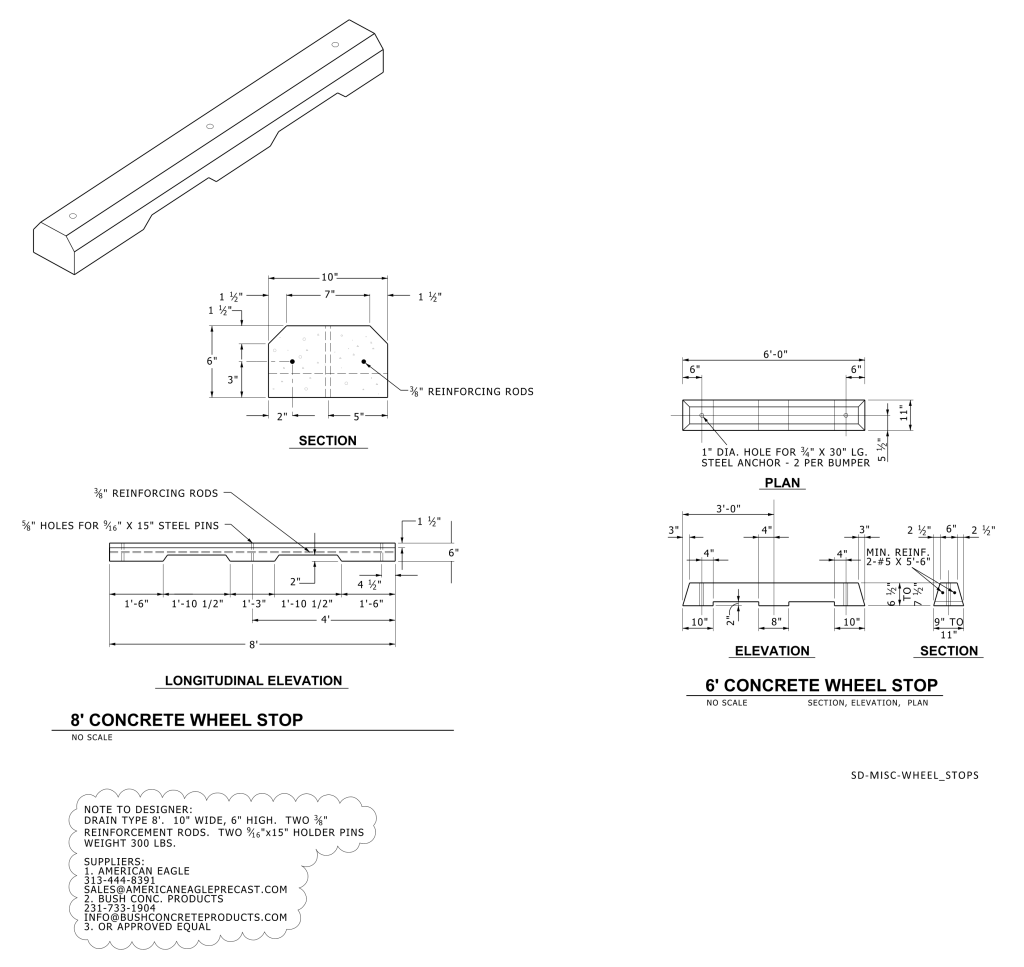

Technical drawings of concrete wheel stops in both 8-foot and 6-foot configurations. On the left, the 8′ concrete wheel stop is shown with three main views: an isometric perspective, a section view, and a longitudinal elevation. The isometric view illustrates the wheel stop as a long rectangular block with a beveled top edge and evenly spaced holes. The section view provides detailed measurements, showing reinforcing rods and dimensions in inches. The longitudinal elevation shows a side view with specific hole placements and distances, with notations for reinforcing rods.

On the right, the 6′ concrete wheel stop drawing includes a plan view, elevation, and section. The plan view shows the top face of the stop with exact hole placement for steel anchors. The elevation view depicts a front-facing drawing indicating the overall length and placement of holes. The section view provides additional depth and structural details, highlighting the internal reinforcement.
