Memorial Bench Specifications

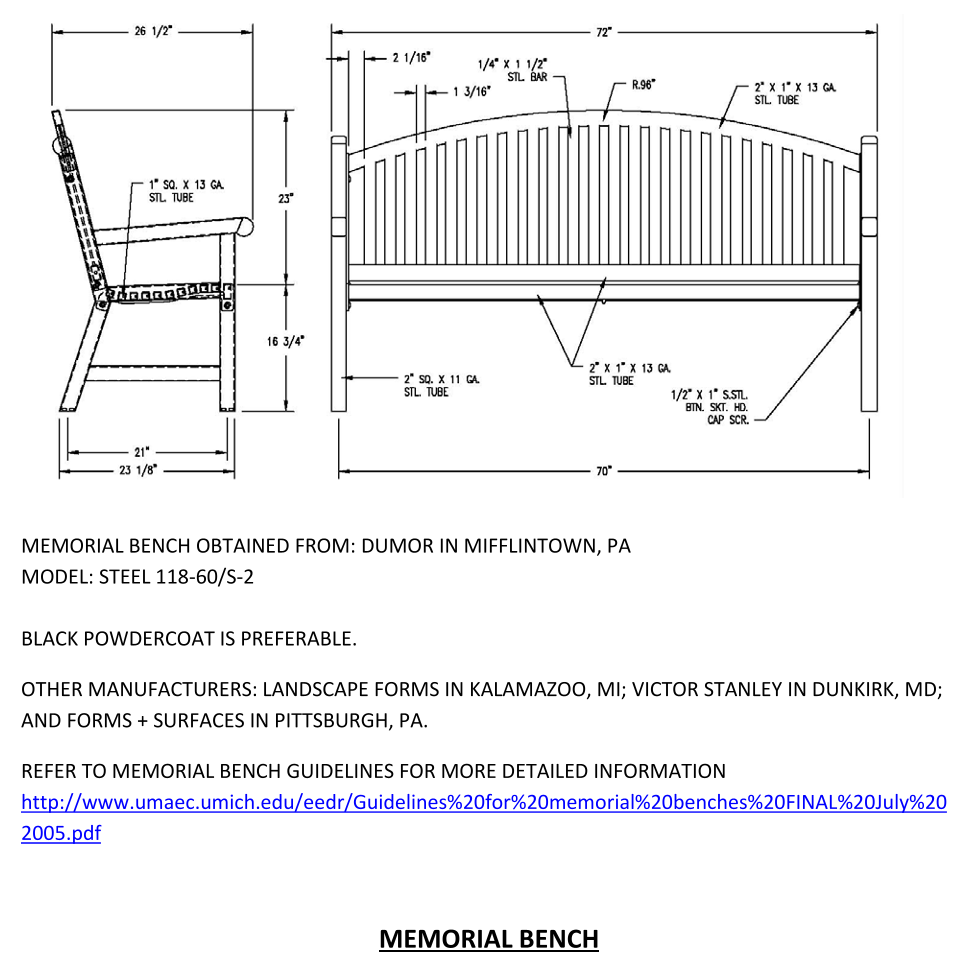

A technical drawing of a memorial bench, displaying both the side and front views. The bench design features a curved backrest with vertical slats, supported by square tubular steel. The side view shows the bench’s angled backrest and legs, made from 1-inch square tubular steel, with a seat depth of 23 inches. The front view displays the total width of 72 inches, including decorative elements such as small arches above the slats. The design specifies a preferable black powder coat finish. Various dimensions and materials, such as steel bars and tubing, are labeled throughout the drawing.
